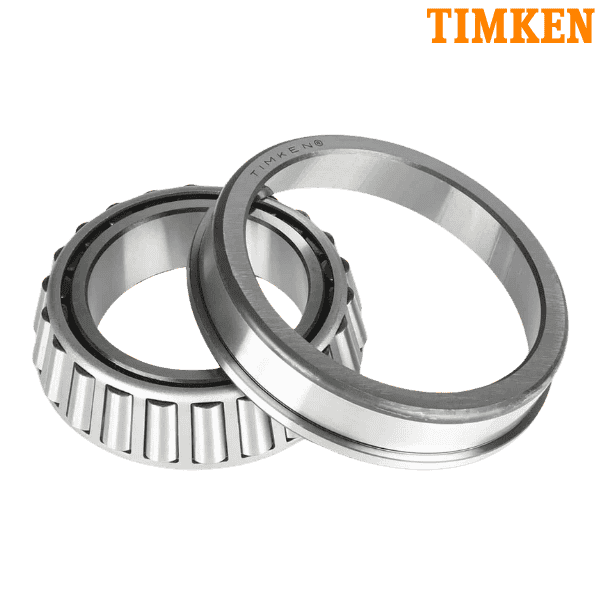

02475/02420-B TIMKEN

TIMKEN

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - TIMKEN
Item Number - 02475/02420-B TIMKEN
Also Known As - 02475 - 02420-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 31.75
Bore Diameter (d) inch - 1.25
Outer Diameter (D) mm - 68.262
Outer Diameter (D) inch - 2.6875
Width (T1) mm - 8.73
Width (T1) inch - 0.3437
Dynamic Load Rating (C1) N - 63800
Dynamic Load Rating (C1) lbf - 14300
Factor (e) - 0.42
Factor (Y) - 1.44
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 16500
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 3720
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 11800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2650
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.4
Basic Static Radial Load Rating (C0) N - 70200
Basic Static Radial Load Rating (C0) lbf - 15800
Cone Width (B) mm - 22.225
Cone Width (B) inch - 0.875
Cup Width (C) mm - 17.462
Cup Width (C) inch - 0.6875
Effective Center Location (a) mm - -5.1
Effective Center Location (a) inch - -0.2
Outer Diameter of Outer Ring Flange (D1) mm - 72.128
Outer Diameter of Outer Ring Flange (D1) inch - 2.8397
Flange Width (C2) mm - 3.967
Flange Width (C2) inch - 0.1562
Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 38.5
Cone Frontface Backing Diameter (da) inch - 1.52
Cone Backface Backing Diameter (db) mm - 44.5
Cone Backface Backing Diameter (db) inch - 1.75
Cup Frontface Backing Diameter (Da) mm - 65
Cup Frontface Backing Diameter (Da) inch - 2.56
Geometry Factor (G1) - 17.5
Geometry Factor (G2) - 8.5
Geometry Factor (Cg) - 0.0681
Weight (kg) - 0.43
Weight (lbs) - 0.94
Inner Part Number - 02475
Outer Part Number - 02420-B
TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
