Description
Brand - DODGE
Item Number - 023713 DODGE - S1U-D1-110M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 110
Part Name - S1U-D1-110M
Approximate Weight (lbs) - 55
Approximate Weight (kg) - 24.94756

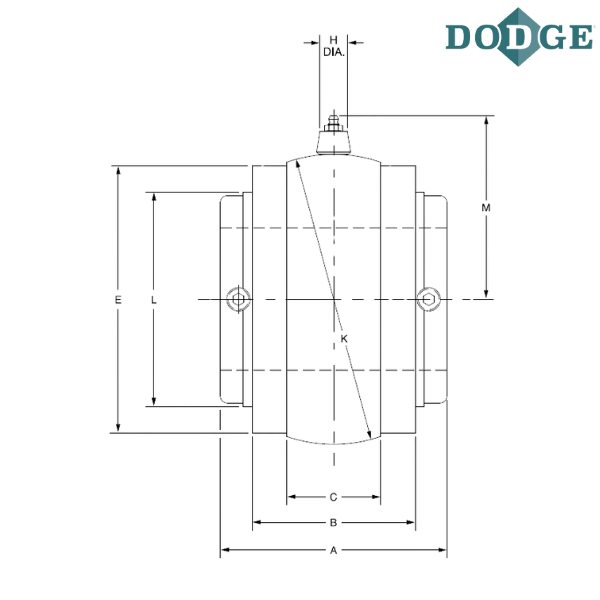

A (mm) - 6.75
B (mm) - 4.625
C (mm) - 2.375
E (Machine Side) mm - 8.313
E (Cast Side) mm - 8.375
H (mm) - 0.313
K ** (mm) - 8.872
L (mm) - 6.438
M (mm) - 5.6
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
** +/-.0005”

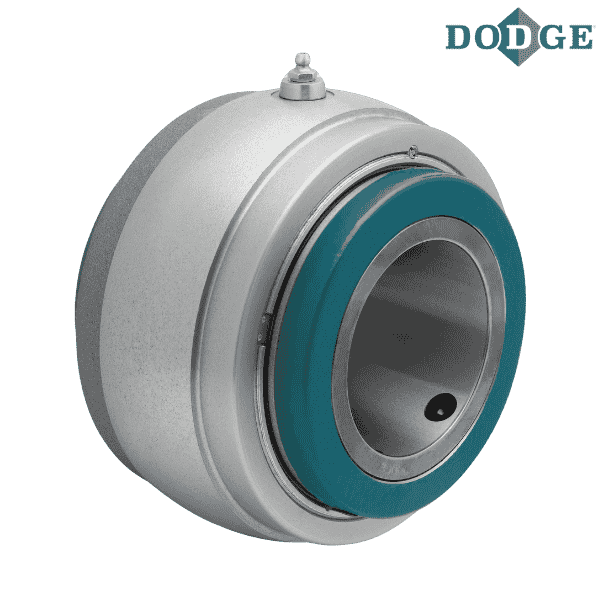

*** Images are for representation purposes only
