Description
Brand - DODGE

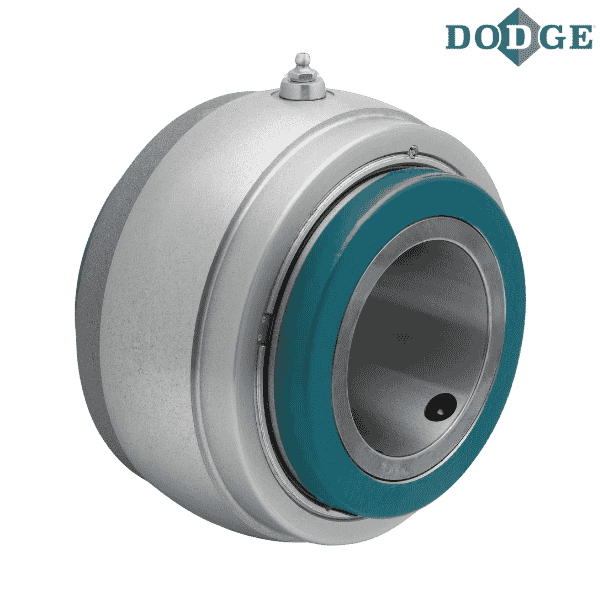

Item Number - 023700 DODGE - S1U-DI-035M
Category - DOUBLE-INTERLOCK - Metric (“S-1” Units)
Shaft Size (mm) - 35
Part Name - S1U-DI-035M
Approximate Weight (lbs) - 5
Approximate Weight (kg) - 2.26796
A (mm) - 3
B (mm) - 2.063
C (mm) - 1.156
E (Machine Side) mm - 3.25
E (Cast Side) mm - 3.3125
H (mm) - 0.688
K * (mm) - 3.625
L (mm) - 2.75
M (mm) - 2.64
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
M - Millimeter
* +.000 to -.001”
** Images are for representation purposes only
