023639 DODGE - P4B-E-160MR

Brand - DODGE
Item Number - 023639 DODGE - P4B-E-160MR
Category - Type E-Xtra - Plummer Block - Metric (4-Bolt)
Shaft Size (mm) - 160
Part Name - P4B-E-160MR
Approximate Weight (lbs) - 355
Approximate Weight (kg) - 161.02516

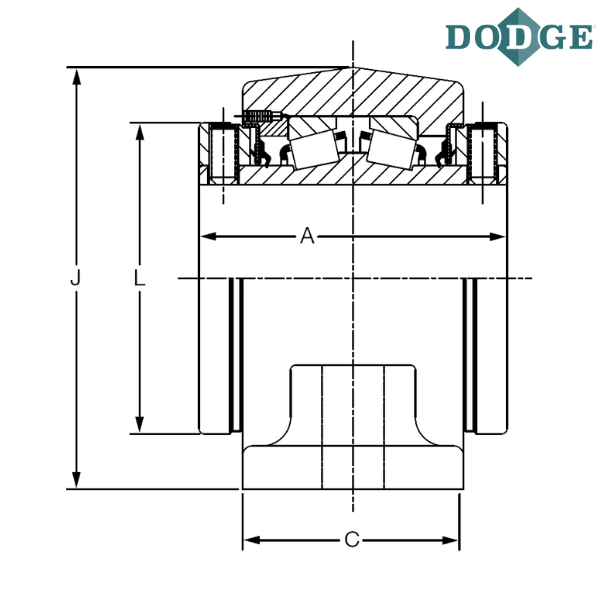

Length Through Bore (A) mm - 266.7

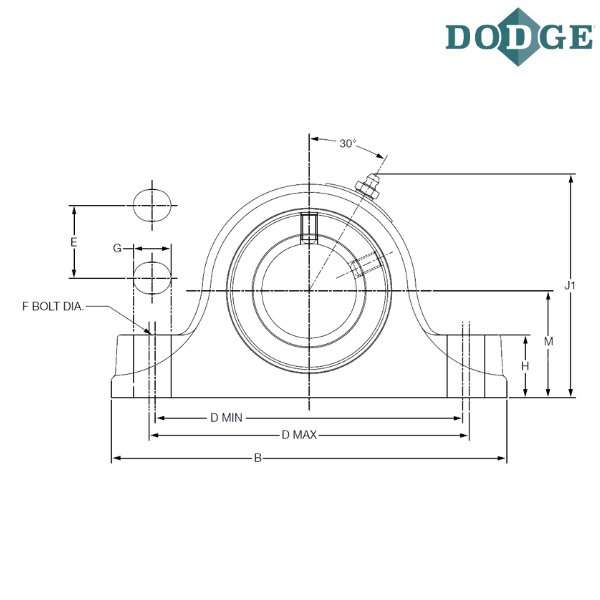

Overall Length (B) mm - 660
C (mm) - 181
Bolt to Bolt Minimum Distance (D min) mm - 539.8
Bolt to Bolt Maximum Distance (D max) mm - 590.6
E (mm) - 117.5
F-Bolt Diameter - M24
G (mm) - 51
H (mm) - 94
Overall Height (J1) mm - 379
L (mm) - 289
Base to Center Height (M) mm - 190.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

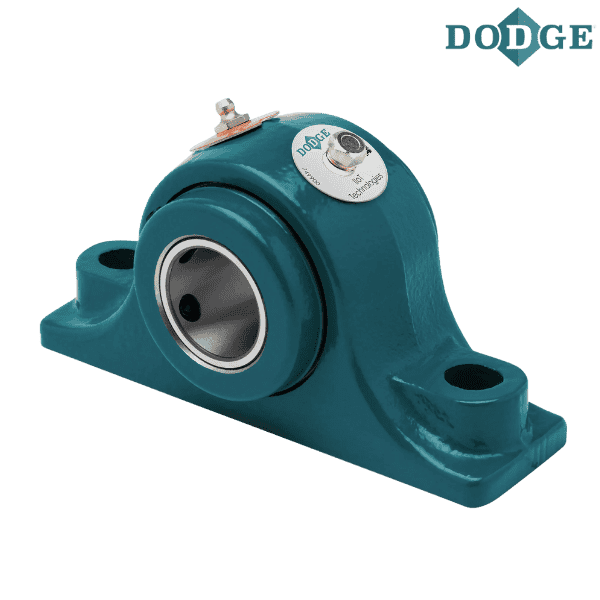

P4B - Pillow Block 4-Bolt, Cast Iron
E - Type E
M - Millimeter
R - “XTS” Triple Lip Seal

** Images are for representation purposes only
