023636 DODGE - P4B-E-135MR

Brand - DODGE
Item Number - 023636 DODGE - P4B-E-135MR
Category - Type E-Xtra - Plummer Block - Metric (4-Bolt)
Shaft Size (mm) - 135
Part Name - P4B-E-135MR
Approximate Weight (lbs) - 245
Approximate Weight (kg) - 111.13004

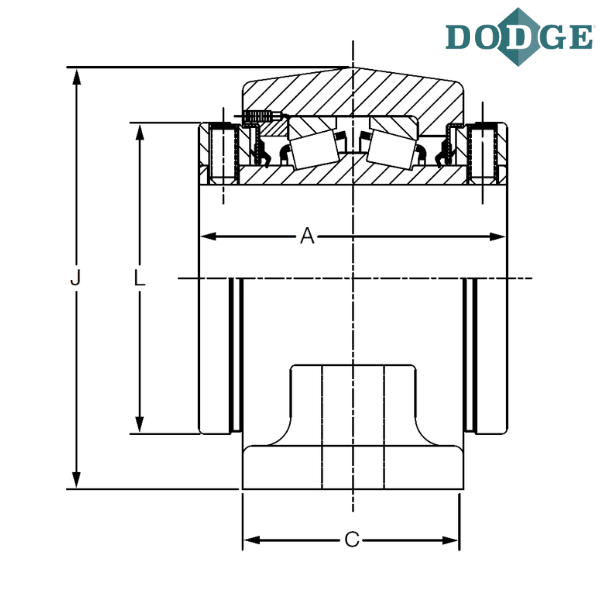

Length Through Bore (A) mm - 228.6

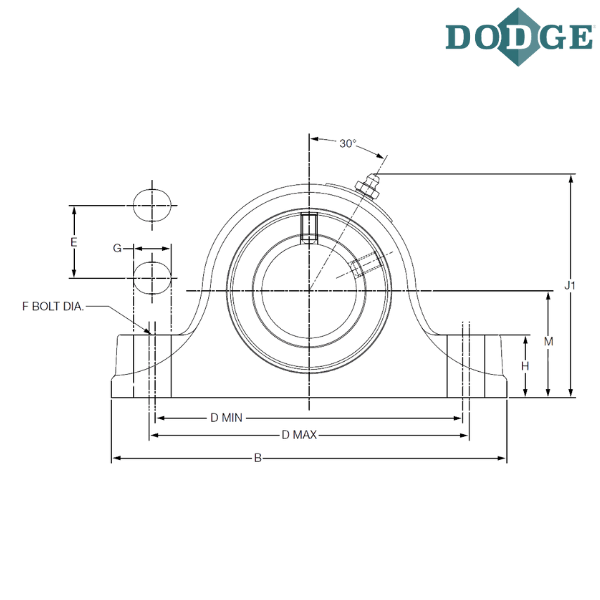

Overall Length (B) mm - 559
C (mm) - 159
Bolt to Bolt Minimum Distance (D min) mm - 441.3
Bolt to Bolt Maximum Distance (D max) mm - 485.8
E (mm) - 95.3
F-Bolt Diameter - M24
G (mm) - 51
H (mm) - 83
Overall Height (J1) mm - 335
L (mm) - 238
Base to Center Height (M) mm - 169.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

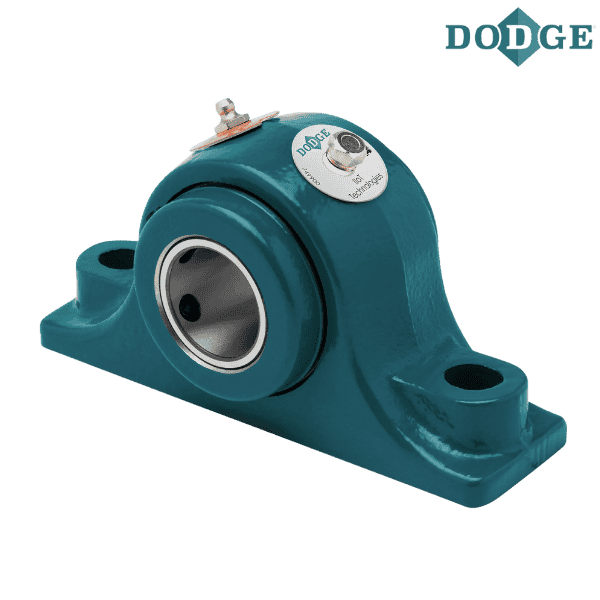

P4B - Pillow Block 4-Bolt, Cast Iron
E - Type E
M - Millimeter
R - “XTS” Triple Lip Seal

** Images are for representation purposes only
