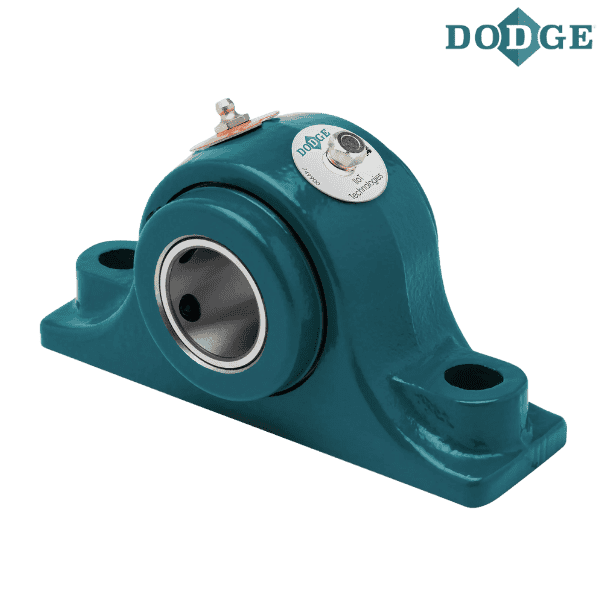

023633 DODGE - P4B-E-110MR

Brand - DODGE
Item Number - 023633 DODGE - P4B-E-110MR
Category - Type E-Xtra - Plummer Block - Metric (4-Bolt)
Shaft Size (mm) - 110
Part Name - P4B-E-110MR
Approximate Weight (lbs) - 85
Approximate Weight (kg) - 38.55532

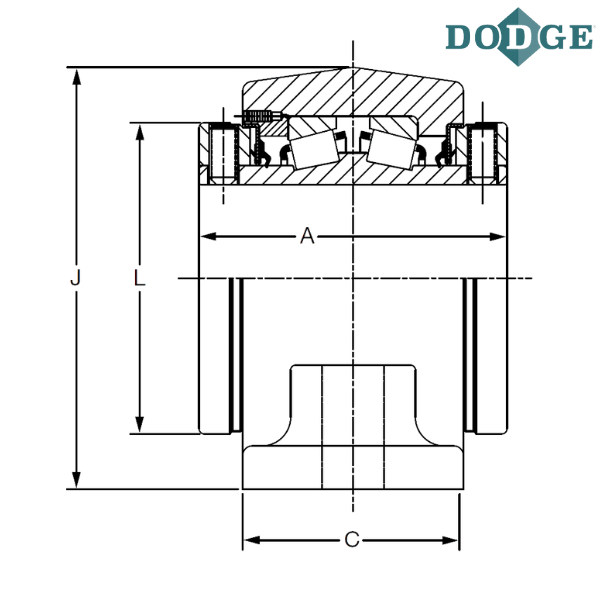

Length Through Bore (A) mm - 171.5

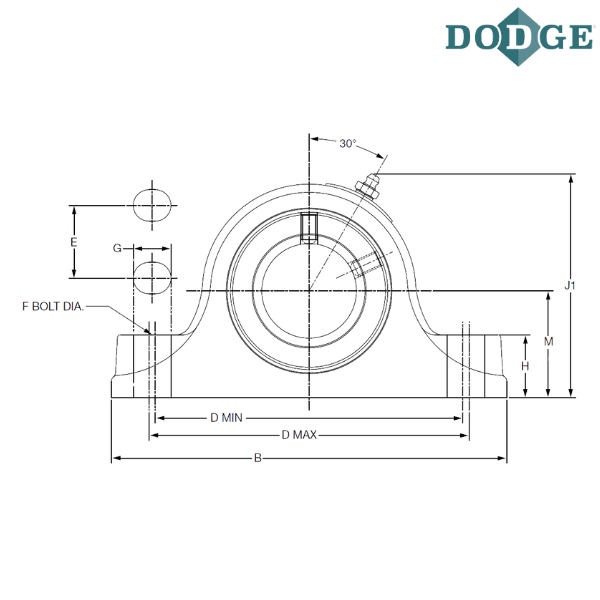

Overall Length (B) mm - 422
C (mm) - 117
Bolt to Bolt Minimum Distance (D min) mm - 336.6
Bolt to Bolt Maximum Distance (D max) mm - 349.3
E (mm) - 63.5
F-Bolt Diameter - M20
G (mm) - 28
H (mm) - 70
Overall Height (J1) mm - 238
L (mm) - 164
Base to Center Height (M) mm - 120.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
E - Type E
M - Millimeter
R - “XTS” Triple Lip Seal

** Images are for representation purposes only
