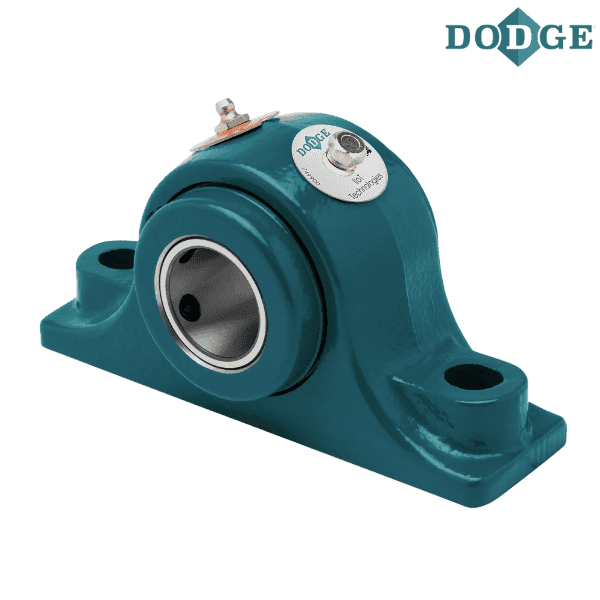

023632 DODGE - P4B-E-100MR

Brand - DODGE
Item Number - 023632 DODGE - P4B-E-100MR
Category - Type E-Xtra - Plummer Block - Metric (4-Bolt)
Shaft Size (mm) - 100
Part Name - P4B-E-100MR
Approximate Weight (lbs) - 69
Approximate Weight (kg) - 31.297848

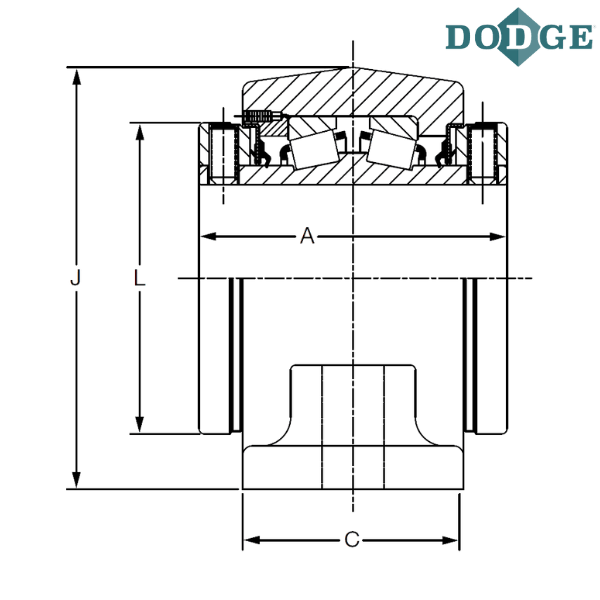

Length Through Bore (A) mm - 158.8

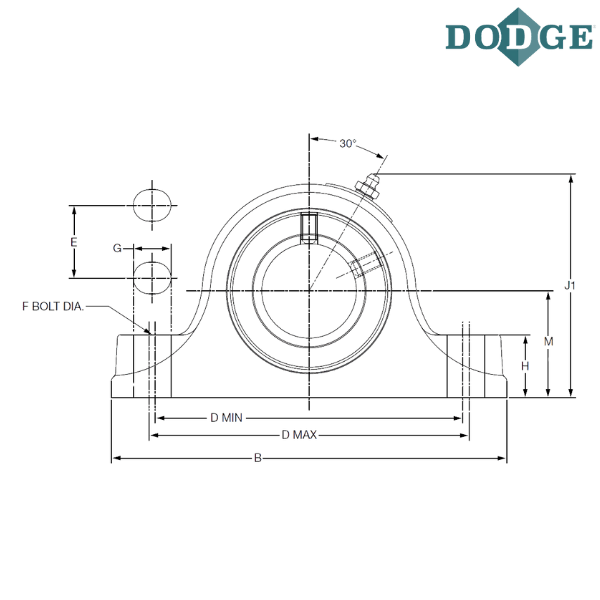

Overall Length (B) mm - 387
C (mm) - 114
Bolt to Bolt Minimum Distance (D min) mm - 311.2
Bolt to Bolt Maximum Distance (D max) mm - 323.9
E (mm) - 57.2
F-Bolt Diameter - M20
G (mm) - 28
H (mm) - 62
Overall Height (J1) mm - 216
L (mm) - 152.4
Base to Center Height (M) mm - 108
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
E - Type E
M - Millimeter
R - “XTS” Triple Lip Seal

** Images are for representation purposes only
