023631 DODGE - P2B-E-090MR

Brand - DODGE
Item Number - 023631 DODGE - P2B-E-090MR
Category - Type E-Xtra - Plummer Block - Metric (2-Bolt)
Shaft Size (mm) - 90
Part Name - P2B-E-090MR
Approximate Weight (lbs) - 45
Approximate Weight (kg) - 20.41164

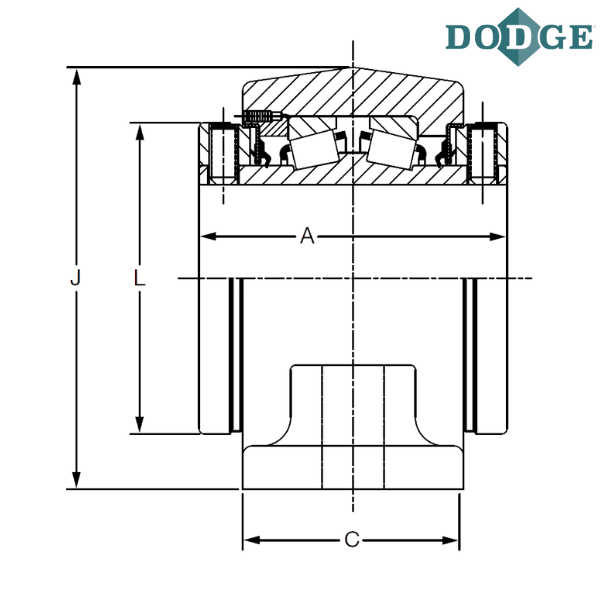

Length Through Bore (A) mm - 127

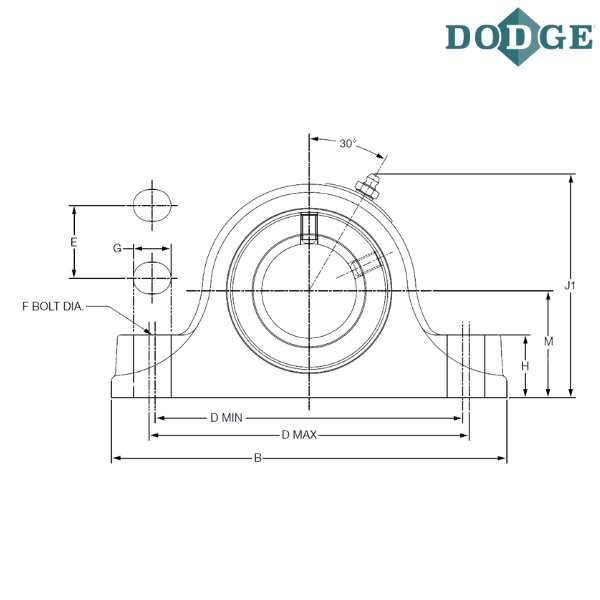

Overall Length (B) mm - 356
C (mm) - 89
Bolt to Bolt Minimum Distance (D min) mm - 274.6
Bolt to Bolt Maximum Distance (D max) mm - 284.2
F-Bolt Diameter - M20
G (mm) - 30
H (mm) - 57
Overall Height (J1) mm - 190.5
L (mm) - 139.7
Base to Center Height (M) mm - 95.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
M - Millimeter
R - “XTS” Triple Lip Seal

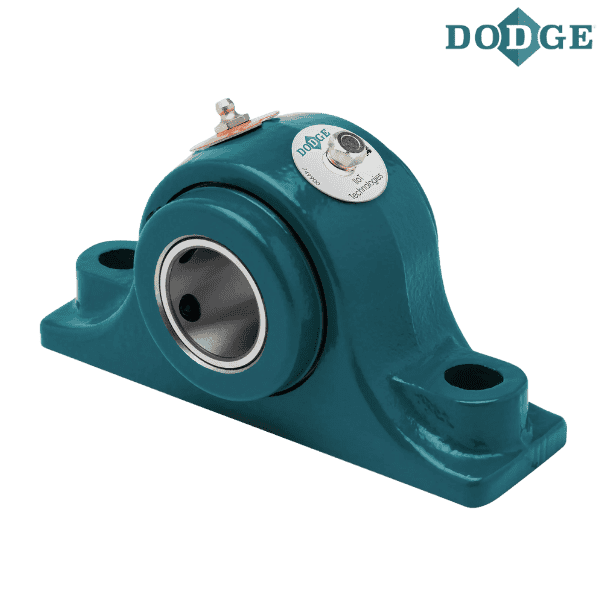

** Images are for representation purposes only
