023625 DODGE - P2B-E-060MR

Brand - DODGE
Item Number - 023625 DODGE - P2B-E-060MR
Category - Type E-Xtra - Plummer Block - Metric (2-Bolt)
Shaft Size (mm) - 60
Part Name - P2B-E-060MR
Approximate Weight (lbs) - 20
Approximate Weight (kg) - 9.07184

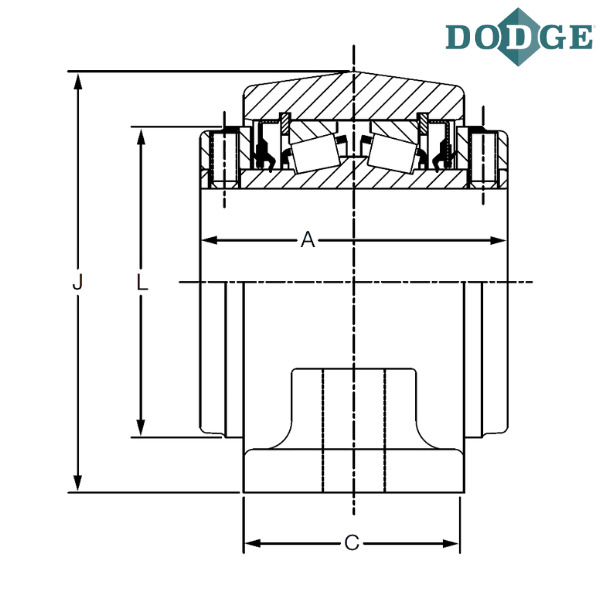

Length Through Bore (A) mm - 101.6

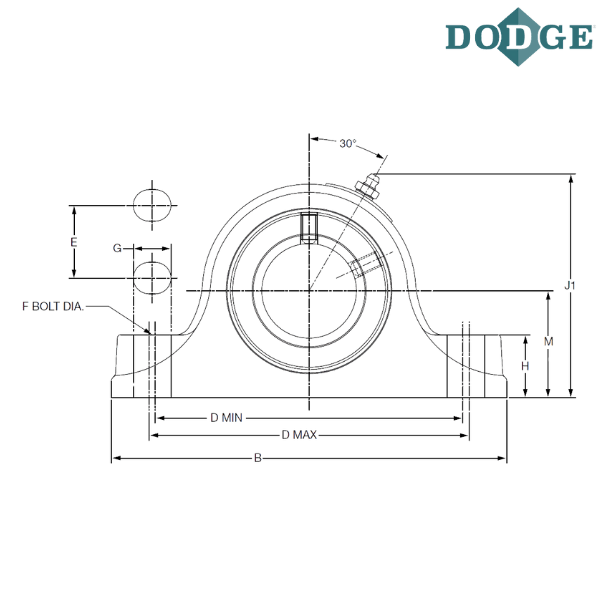

Overall Length (B) mm - 267
C (mm) - 73
Bolt to Bolt Minimum Distance (D min) mm - 212.7
Bolt to Bolt Maximum Distance (D max) mm - 219
F-Bolt Diameter - M16
G (mm) - 22
H (mm) - 41
Overall Height (J1) mm - 142.8
L (mm) - 103
Base to Center Height (M) mm - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

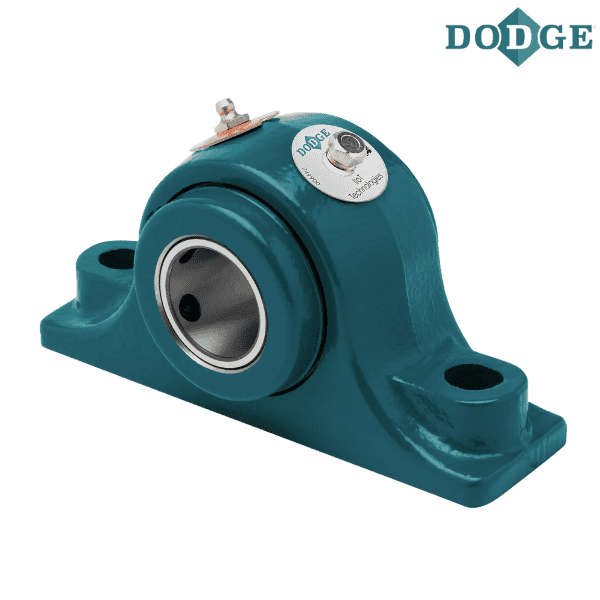

P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
M - Millimeter
R - “XTS” Triple Lip Seal

** Images are for representation purposes only
