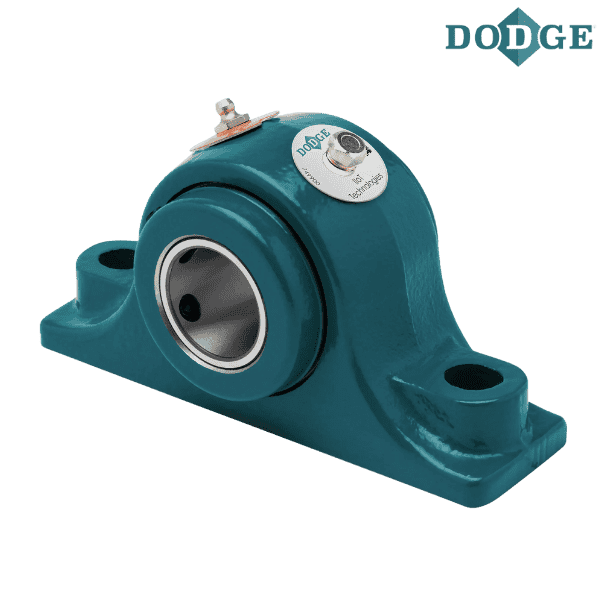

023620 DODGE - P2B-E-035MR

Brand - DODGE
Item Number - 023620 DODGE - P2B-E-035MR
Category - Type E-Xtra - Plummer Block - Metric (2-Bolt)
Shaft Size (mm) - 35
Part Name - P2B-E-035MR
Approximate Weight (lbs) - 7
Approximate Weight (kg) - 3.175144

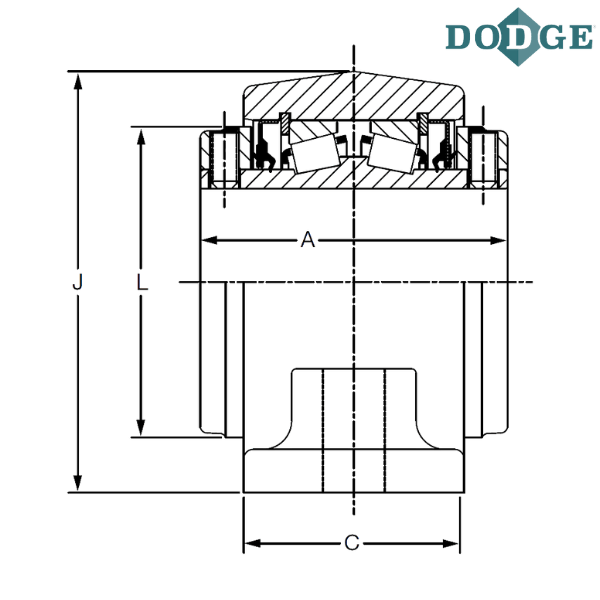

Length Through Bore (A) mm - 76.2

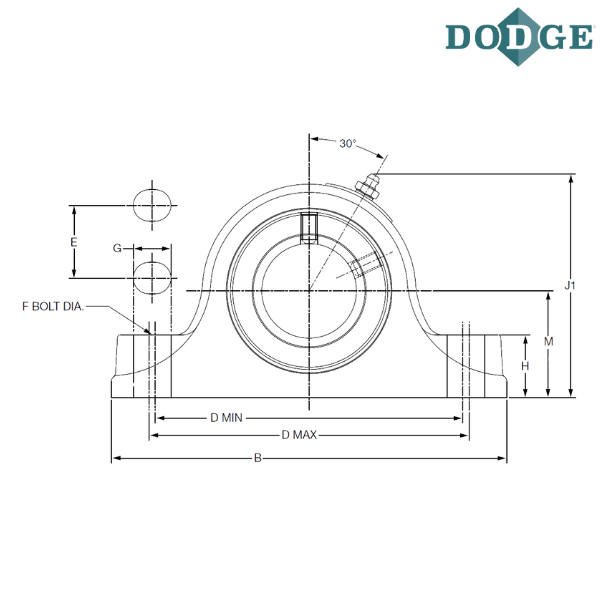

Overall Length (B) mm - 187
C (mm) - 54
Bolt to Bolt Minimum Distance (D min) mm - 142.8
Bolt to Bolt Maximum Distance (D max) mm - 149.2
F-Bolt Diameter - M12
G (mm) - 19
H (mm) - 29
Overall Height (J1) mm - 101.6
L (mm) - 70
Base to Center Height (M) mm - 47.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
M - Millimeter
R - “XTS” Triple Lip Seal

** Images are for representation purposes only
