023604 DODGE - P4B-534-TAF-515-RE

Brand - DODGE
Item Number - 023604 DODGE - P4B-534-TAF-515-RE
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 5.9375
Shaft Size Symbol - 515
SAF Housing Number - 534
Description - P4B-534-TAF-515-R
Housing Only - 042629
Bearing Inner Unit - 023611
Approximate Weight of Pillow Block (lbs) - 300

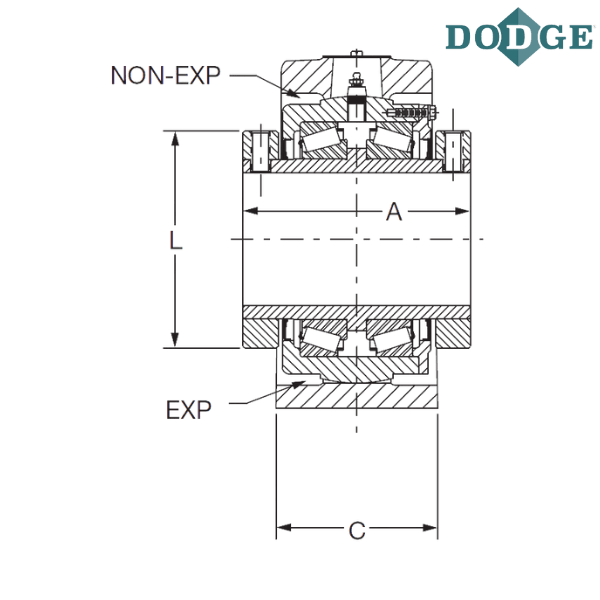

Length Through Bore (A) inch - 9

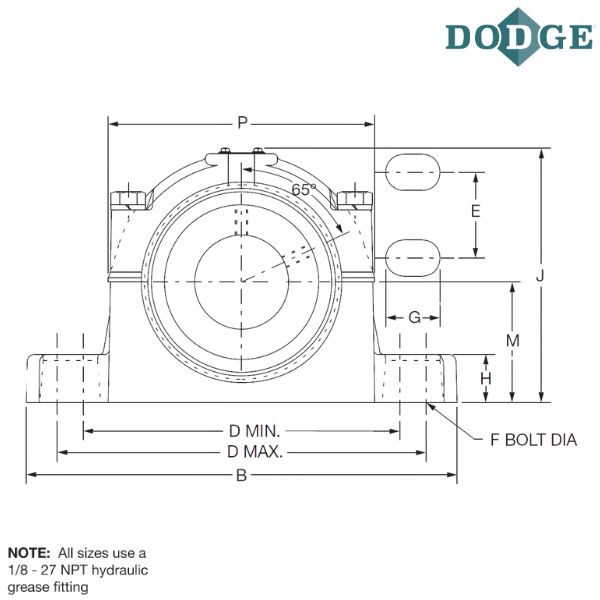

Overall Length (B) inch - 24.75
C (inch) - 6.75
Bolt to Bolt Minimum Distance (D min) inch - 19
Bolt to Bolt Maximum Distance (D max) inch - 21.63
E (inch) - 4.25
F-Bolt Diameter (inch) - 1
G (inch) - 2.44
H (inch) - 2.88
Overall Height (J) inch - 14.38
L (inch) - 9.38
Base to Center Height (M) inch - 7.06
P (inch) - 15.13
EXP* (inch) - 0.40625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal
E - Expansion Type Bearing

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

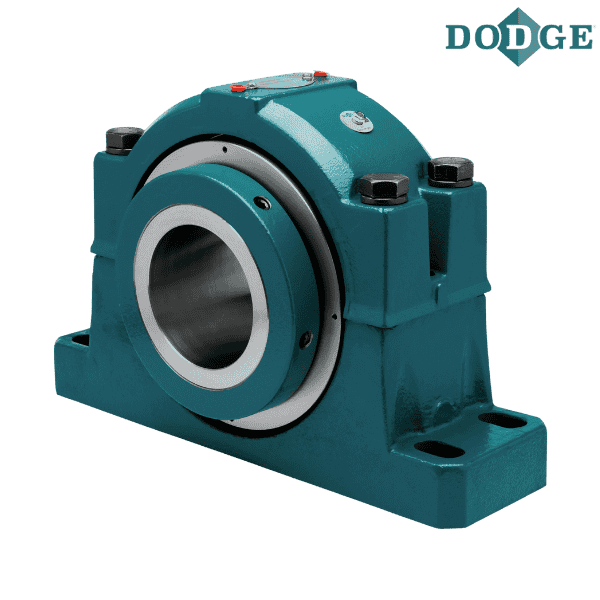

** Images are for representation purposes only
