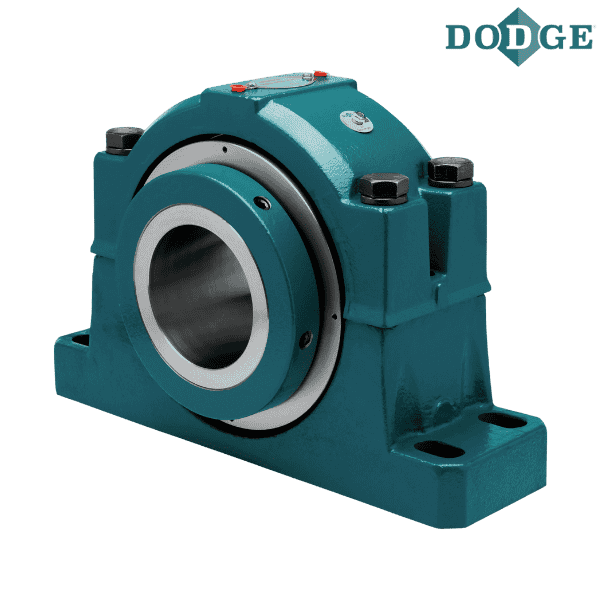

023603 DODGE - P4B-532-TAF-507-RE

Brand - DODGE
Item Number - 023603 DODGE - P4B-532-TAF-507-RE
Category - 2-Bolt Base TAF Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 5.4375
Shaft Size Symbol - 507
SAF Housing Number - 532
Description - P4B-532-TAF-507-R
Housing Only - 042627
Bearing Inner Unit - 023610
Approximate Weight of Pillow Block (lbs) - 300

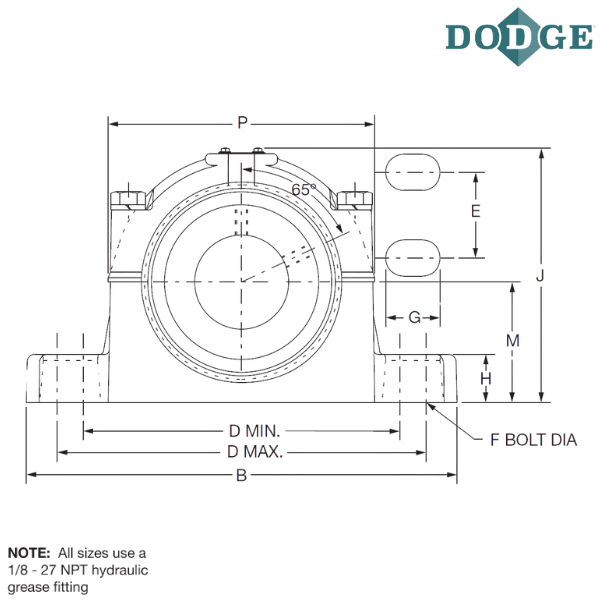

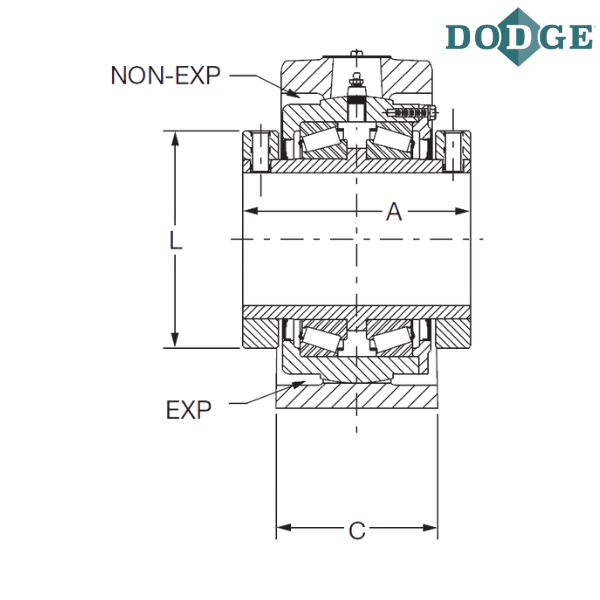

Length Through Bore (A) inch - 9
Overall Length (B) inch - 21.66
C (inch) - 6.25
Bolt to Bolt Minimum Distance (D min) inch - 17.63
Bolt to Bolt Maximum Distance (D max) inch - 19.25
E (inch) - 3.75
F-Bolt Diameter (inch) - 1
G (inch) - 1.92
H (inch) - 2.34
Overall Height (J) inch - 14
L (inch) - 9.38
Base to Center Height (M) inch - 6.69
P (inch) - 15.13
EXP* (inch) - 0.40625
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
5XX - Housing Series (TAF Only)
R - “XTS” Triple Lip Seal
E - Expansion Type Bearing

* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

** Images are for representation purposes only
