Description
Brand - DODGE
Item Number - 023564 DODGE - B1U-DI-307R
Category - Double-Interlock B-1 Units - Gray Iron
Shaft Size (inch) - 3.4375
Part Name - B1U-DI-307R
Approximate Weight (lbs) - 30

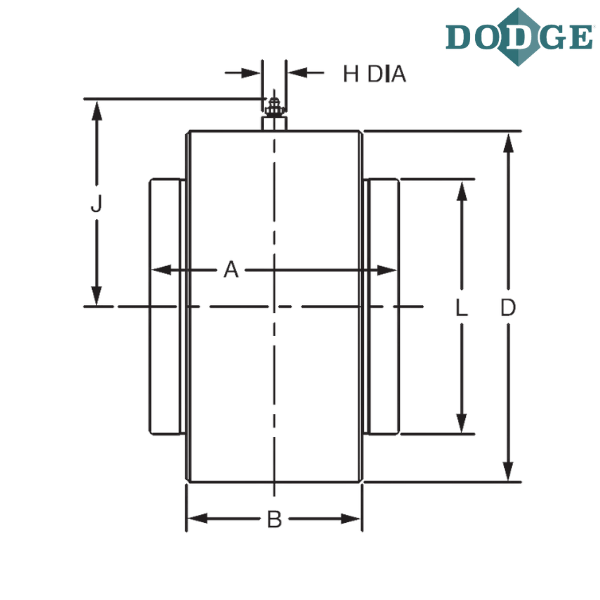

Length Through Bore (A) inch - 5
B (inch) - 3.5
D (inch) - 7.125 (+.000 to -.002”)
H (inch) - 0.6875
J (inch) - 4.38
L (inch) - 5.5
Notes :
B1U - B1 Unit, Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal
B-1 units are used in custom housings or machines with bored holes, functioning as non-expansion or expansion bearings with proper axial locating.
They handle slight misalignment but require additional shaft support. For rotating wheels, Type C B-1 units are recommended, or consult the factory.

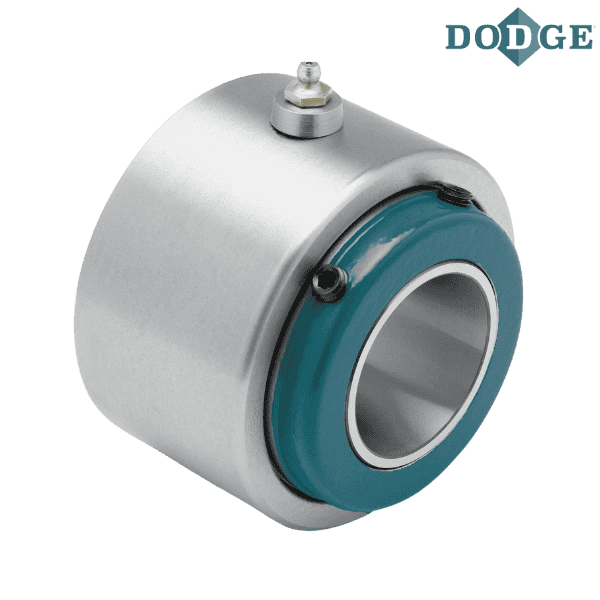

** Images are for representation purposes only
