Description
Brand - DODGE
Item Number - 023545 DODGE - B1U-DI-106R
Category - Double-Interlock B-1 Units - Gray Iron
Shaft Size (inch) - 1.375
Part Name - B1U-DI-106R
Approximate Weight (lbs) - 5

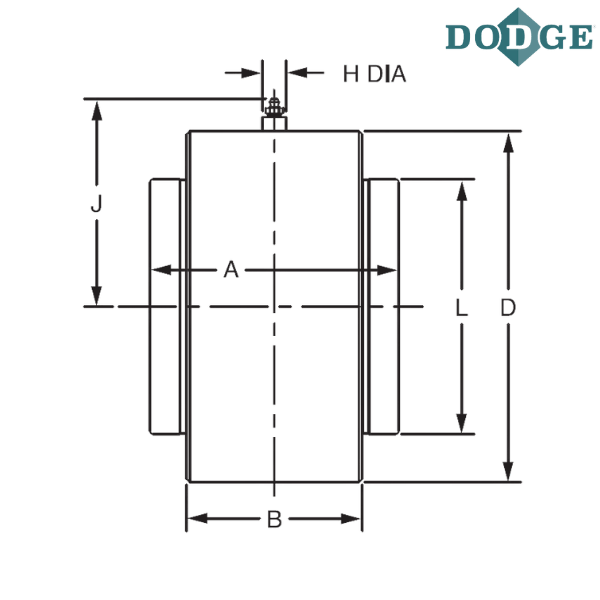

Length Through Bore (A) inch - 3
B (inch) - 2.06
D (inch) - 3.438 (+.000 to -.002”)
H (inch) - 0.6875
J (inch) - 2.54
L (inch) - 2.75
Notes :
B1U - B1 Unit, Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal
B-1 units are used in custom housings or machines with bored holes, functioning as non-expansion or expansion bearings with proper axial locating.
They handle slight misalignment but require additional shaft support. For rotating wheels, Type C B-1 units are recommended, or consult the factory.

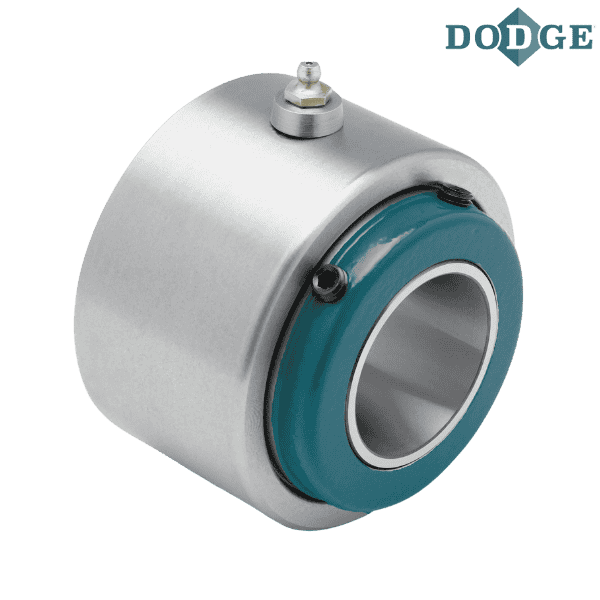

** Images are for representation purposes only
