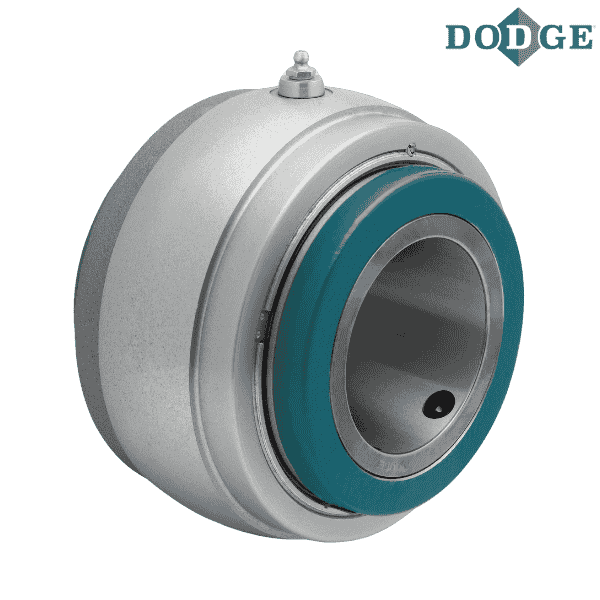

023539 DODGE - S1U-DI-607R

Brand - DODGE
Item Number - 023539 DODGE - S1U-DI-607R
Category - Double-Interlock S-1 Units - Gray Iron
Shaft Size (inch) - 6.4375
Part Name - S1U-DI-607R
Approximate Weight (lbs) - 187

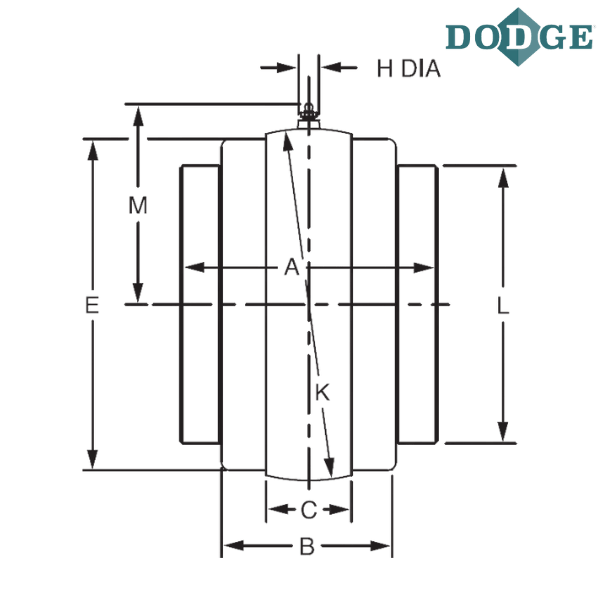

Length Through Bore (A) inch - 10.5
B (inch) - 7.13
C (inch) - 3
E (Machine Side) inch - 13.25
E (Cast Side) inch - 13.25
H (inch) - 0.9375
K (inch) - 14.248
L (inch) - 11.38
M (inch) - 8.29

Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal

Pillow Block: S-1 units are used in expansion and non-expansion pillow block housings.
Flange: S-1 units are used in expansion and non-expansion flange housings for 1-3/16" - 4".

** Images are for representation purposes only
