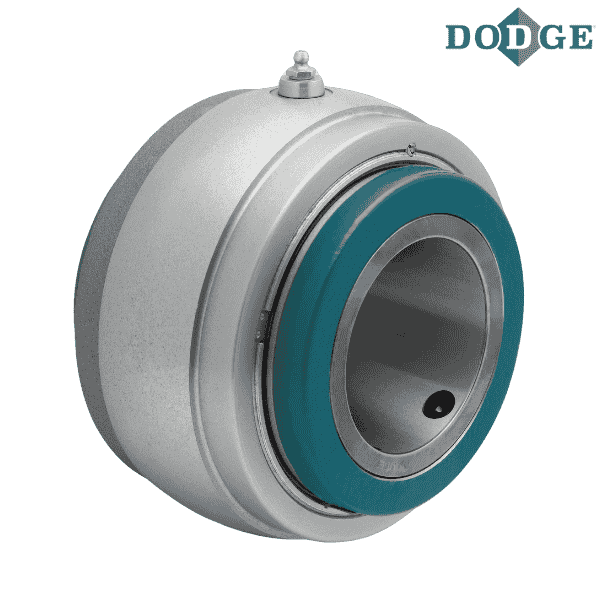

023529 DODGE - S1U-DI-308R

Brand - DODGE
Item Number - 023529 DODGE - S1U-DI-308R
Category - Double-Interlock S-1 Units - Gray Iron
Shaft Size (inch) - 3.5
Part Name - S1U-DI-308R
Approximate Weight (lbs) - 31

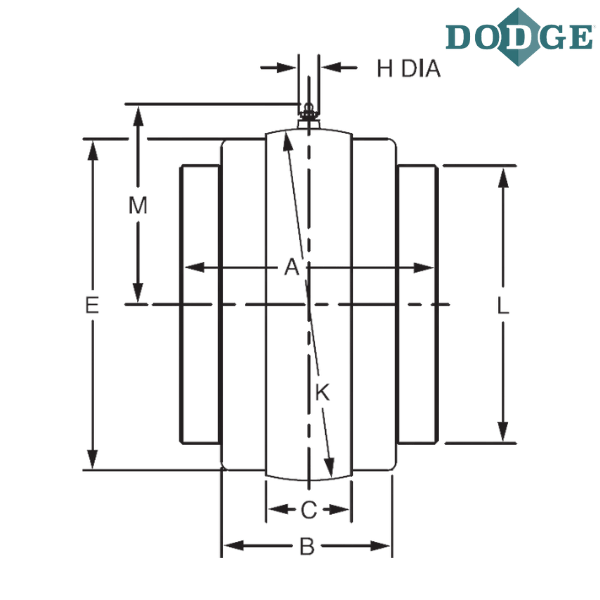

Length Through Bore (A) inch - 5
B (inch) - 3.5
C (inch) - 2
E (Machine Side) inch - 6.81
E (Cast Side) inch - 6.88
H (inch) - 0.6875
K (inch) - 7.373 (±.0005”)
L (inch) - 5.5
M (inch) - 4.51

Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal

Pillow Block: S-1 units are used in expansion and non-expansion pillow block housings.
Flange: S-1 units are used in expansion and non-expansion flange housings for 1-3/16" - 4".

** Images are for representation purposes only
