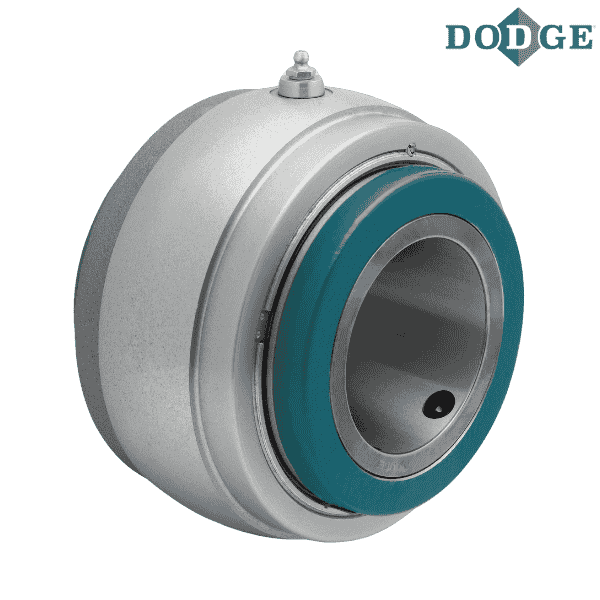

023524 DODGE - S1U-DI-215R

Brand - DODGE
Item Number - 023524 DODGE - S1U-DI-215R
Category - Double-Interlock S-1 Units - Gray Iron
Shaft Size (inch) - 2.9375
Part Name - S1U-DI-215R
Approximate Weight (lbs) - 17

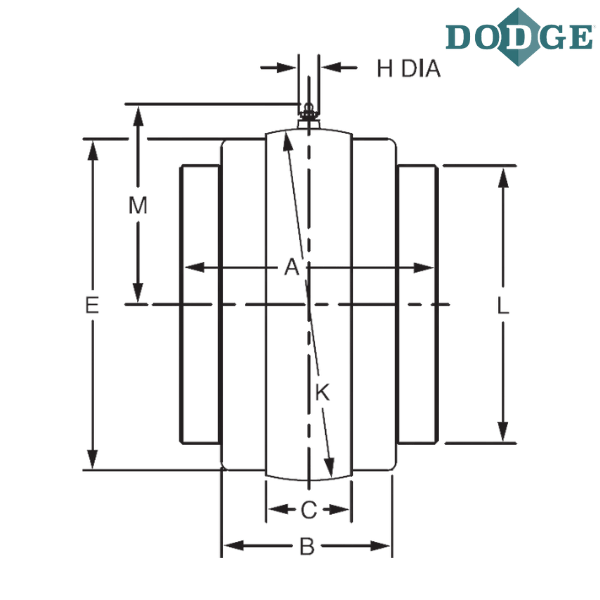

Length Through Bore (A) inch - 4.5
B (inch) - 3
C (inch) - 1.88
E (Machine Side) inch - 5.56
E (Cast Side) inch - 5.63
H (inch) - 0.6875
K (inch) - 6.061 (+.000 to .001”)
L (inch) - 4.72
M (inch) - 3.85

Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal

Pillow Block: S-1 units are used in expansion and non-expansion pillow block housings.
Flange: S-1 units are used in expansion and non-expansion flange housings for 1-3/16" - 4".

** Images are for representation purposes only
