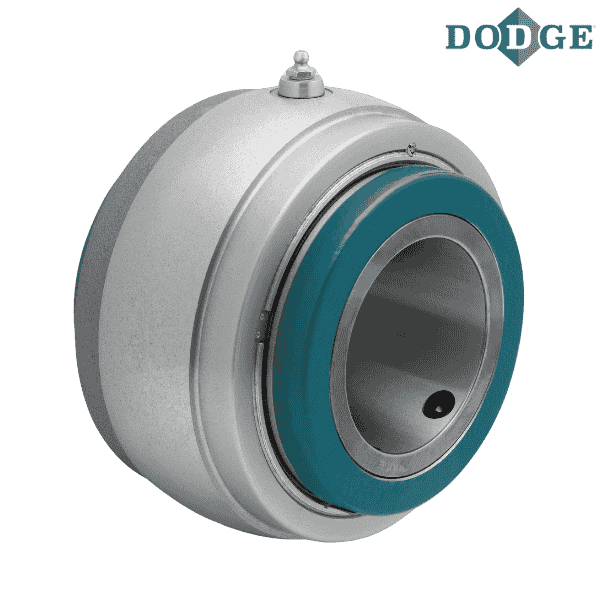

023514 DODGE - S1U-DI-112R

Brand - DODGE
Item Number - 023514 DODGE - S1U-DI-112R
Category - Double-Interlock S-1 Units - Gray Iron
Shaft Size (inch) - 1.75
Part Name - S1U-DI-112R
Approximate Weight (lbs) - 8

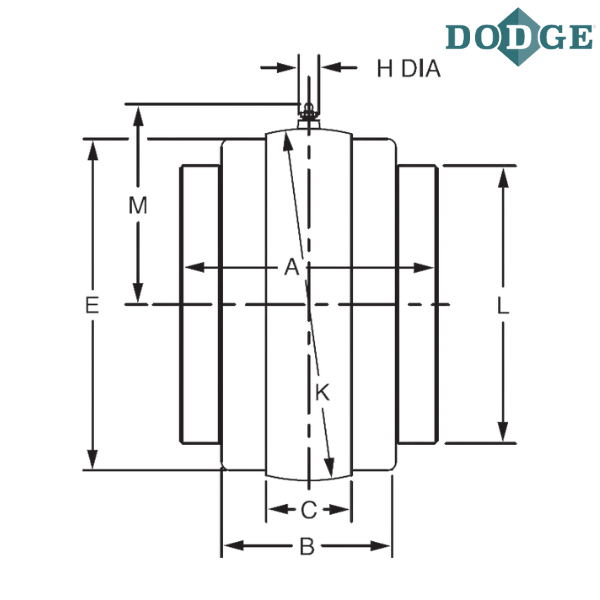

Length Through Bore (A) inch - 3.5
B (inch) - 2.44
C (inch) - 1.5
E (Machine Side) inch - 4.13
E (Cast Side) inch - 4.19
H (inch) - 0.6875
K (inch) - 4.562 (+.000 to .001”)
L (inch) - 3.44
M (inch) - 3.1

Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal

Pillow Block: S-1 units are used in expansion and non-expansion pillow block housings.
Flange: S-1 units are used in expansion and non-expansion flange housings for 1-3/16" - 4".

** Images are for representation purposes only
