Description
Brand - DODGE
Item Number - 023512 DODGE - S1U-DI-110R
Category - Double-Interlock S-1 Units - Gray Iron
Shaft Size (inch) - 1.625
Part Name - S1U-DI-110R
Approximate Weight (lbs) - 7

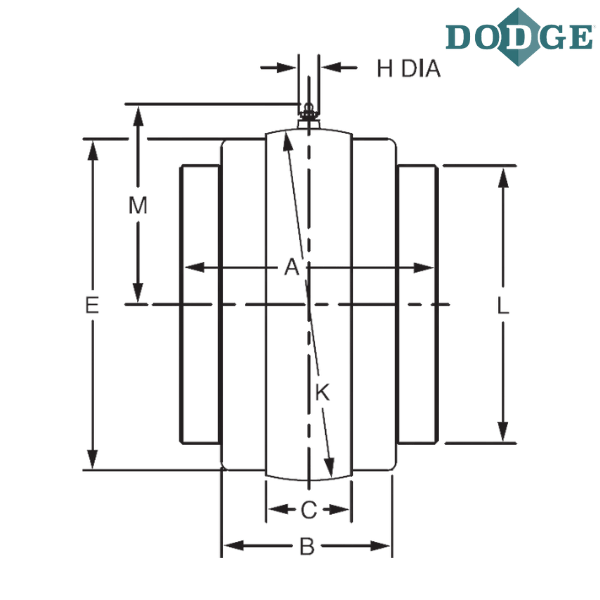

Length Through Bore (A) inch - 3.38
B (inch) - 2.31
C (inch) - 1.19
E (Machine Side) inch - 3.75
E (Cast Side) inch - 3.81
H (inch) - 0.6875
K (inch) - 4.125 (+.000 to .001”)
L (inch) - 3.19
M (inch) - 2.89
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal
Pillow Block: S-1 units are used in expansion and non-expansion pillow block housings.
Flange: S-1 units are used in expansion and non-expansion flange housings for 1-3/16" - 4".

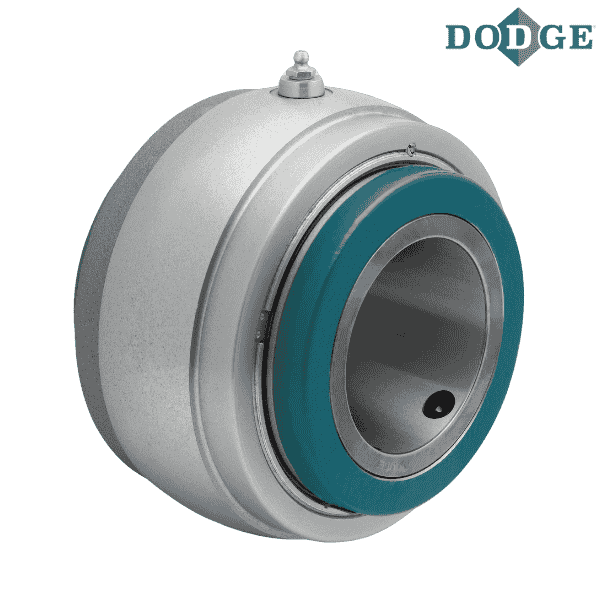

** Images are for representation purposes only
