Description
Brand - DODGE
Item Number - 023497 DODGE - DU-DI-303R
Category - Double-Interlock D Units - Gray Iron
Shaft Size (inch) - 3.1875
Part Name - DU-DI-303R
Approximate Weight (lbs) - 32

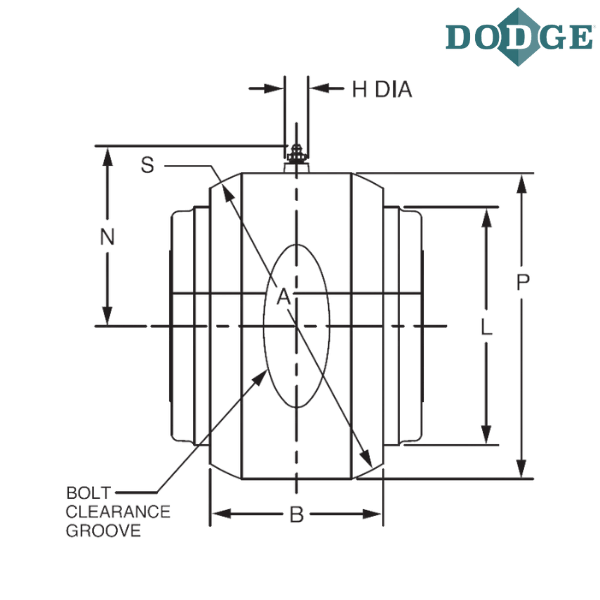

Length Through Bore (A) inch - 5
B (inch) - 3.5
H (inch) - 0.6875
L (inch) - 5.5
N (inch) - 4.69
P (inch) - 7.22
S (inch) - 7.5
Notes :
DU - D Unit, Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal
Flange: D units are used in non-expansion flange housings (4-7/16" - 5" bore size).
Previously used in DOUBLE-INTERLOCK non-expansion flange bearings and pillow blocks up to 5" bore size before 1978.

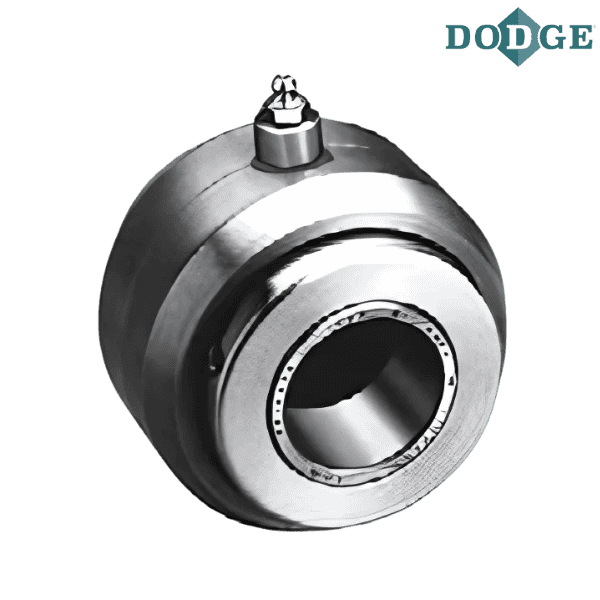

**Images are for representation perposes only
