Description
Brand - DODGE
Item Number - 023219 DODGE - F4B-K-115R
Category - Type K Flange Bearing - Inch (DUCTILE Iron - Non-Expansion)
Shaft Size (inch) - 1.9375
Part Name - F4B-K-115R
Approximate Weight (lbs) - 14

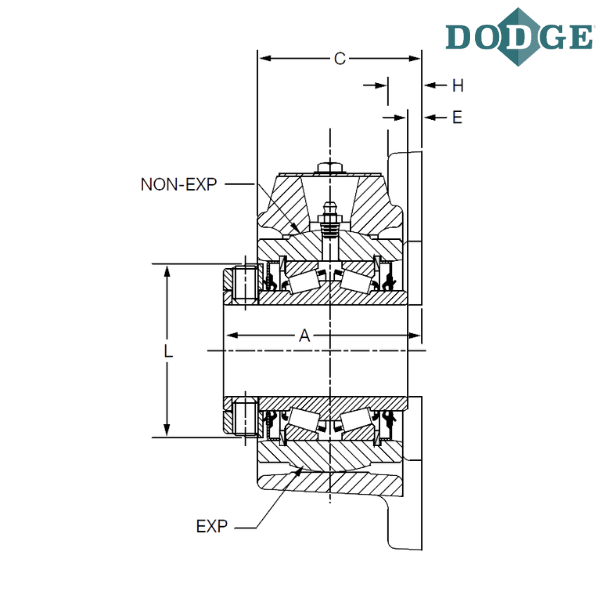

Length Through Bore (A) inch - 3.13

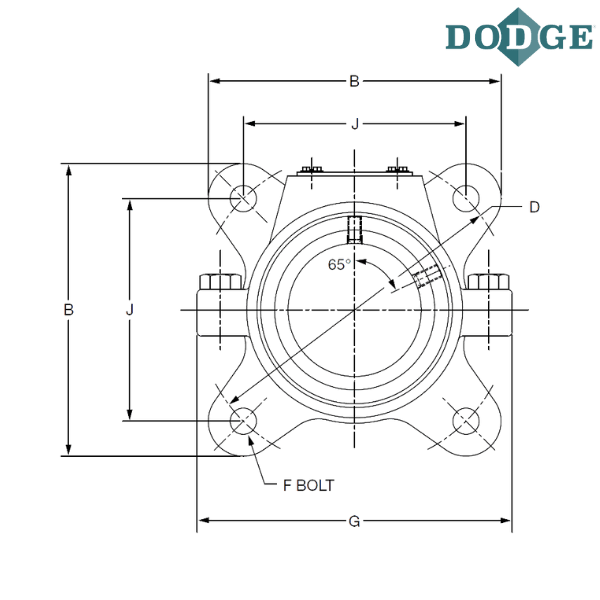

B (inch) - 6.88
C (inch) - 2.56
D (inch) - 7.5
E (inch) - 0.16
F-Bolt Diameter (inch) - 0.625
G (inch) - 7.25
H (inch) - 0.56
J (inch) - 5.31
L (inch) - 3.44
EXP* (inch) - 0.1875
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
K - Type K
R - “XTS” Triple Lip Seal
* EXP. Total Expansion Divided Equally on Both Sides of Bearing (Expansion Bearing Only)

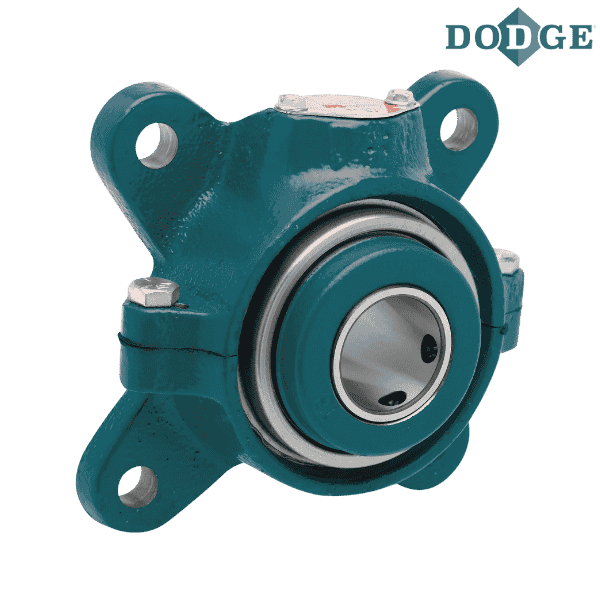

** Images are for representation purposes only
