Description
Brand - DODGE
Item Number - 023162 DODGE - TP-E-304R
Category - Type E-Xtra TP Take-Up Bearing - Inch
Shaft Size (inch) - 3.25
Part Name - TP-E-304R
Approximate Weight (lbs) - 43
Frame Size Reference - TP50

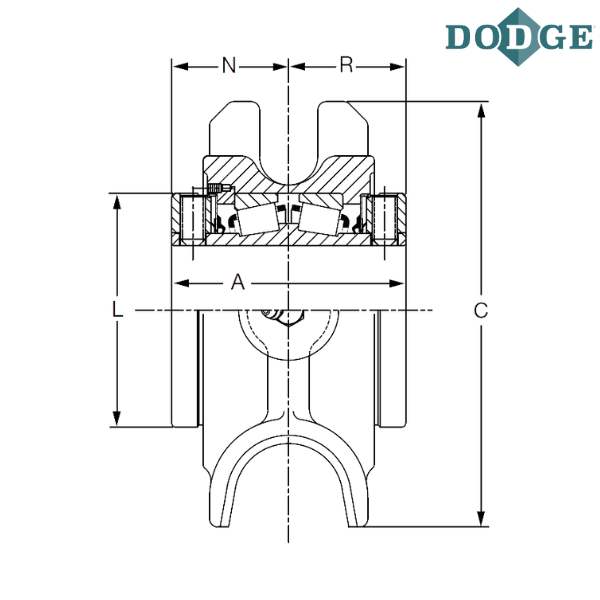

Length Through Bore (A) inch - 5 .00
B (inch) - 8.31
C (inch) - 9.63
L (inch) - 5.5
N (inch) - 2.5
Housing Width (inch) - 3.75

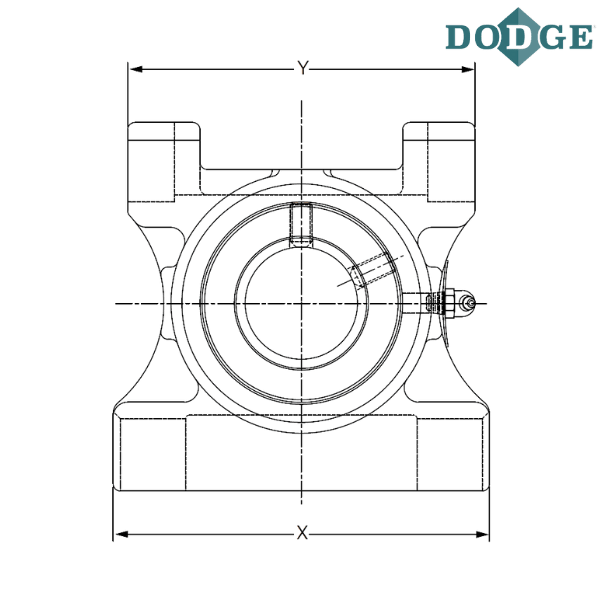

X (inch) - 9.5
Y (inch) - 9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top Angle Take-Up Bearing, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal

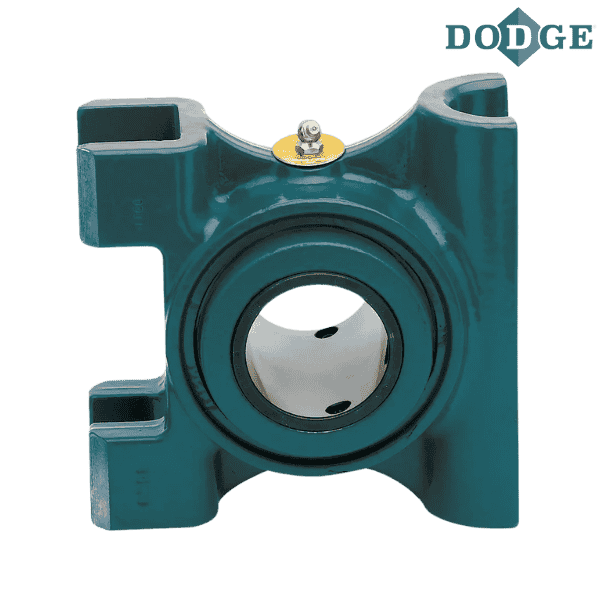

** Images are for representation purposes only
