023160 DODGE - TP-E-300R


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 023160 DODGE - TP-E-300R
Category - Type E-Xtra TP Take-Up Bearing - Inch
Shaft Size (inch) - 3
Part Name - TP-E-300R
Approximate Weight (lbs) - 29
Frame Size Reference - TP40

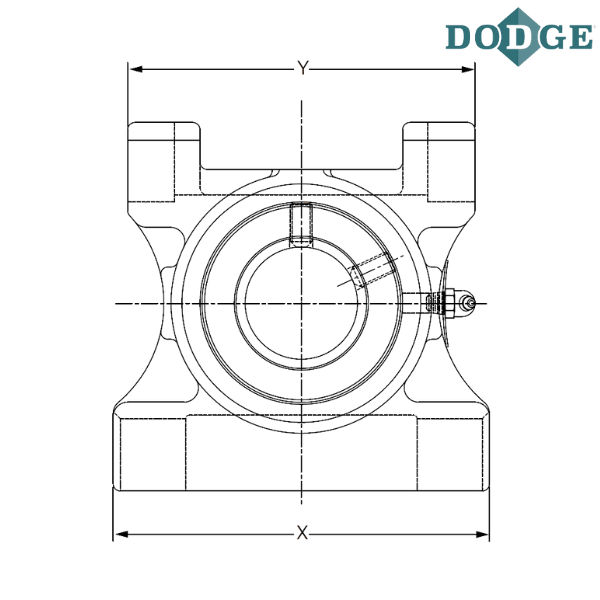

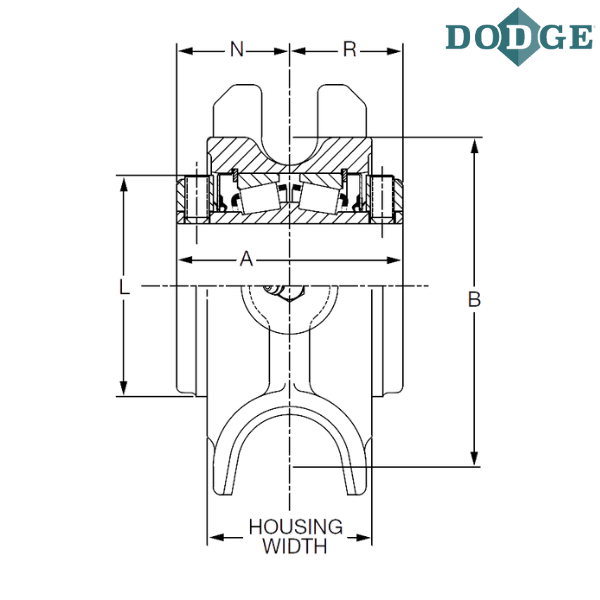

Length Through Bore (A) inch - 4.5
B (inch) - 7.19
C (inch) - 8.31
L (inch) - 4.72
N (inch) - 2.25
Housing Width (inch) - 3
X (inch) - 850
Y (inch) - 8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :

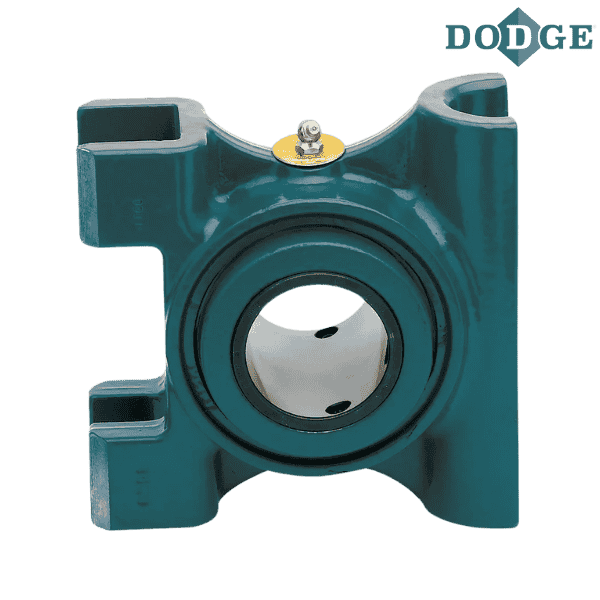

TP - Top Angle Take-Up Bearing, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal
