023153 DODGE - TP-E-203R


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 023153 DODGE - TP-E-203R
Category - Type E-Xtra TP Take-Up Bearing - Inch
Shaft Size (inch) - 2.1875
Part Name - TP-E-203R
Approximate Weight (lbs) - 16
Frame Size Reference - TP20

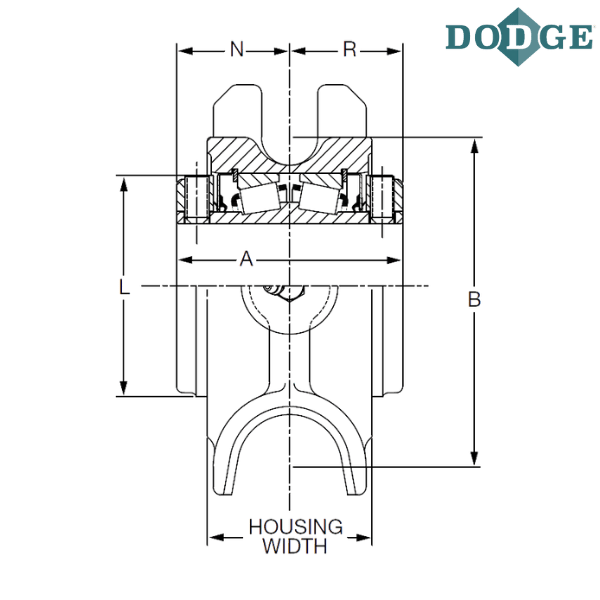

Length Through Bore (A) inch - 3.75
B (inch) - 5.81
C (inch) - 6.88
L (inch) - 3.75
N (inch) - 1.88
Housing Width (inch) - 2.56

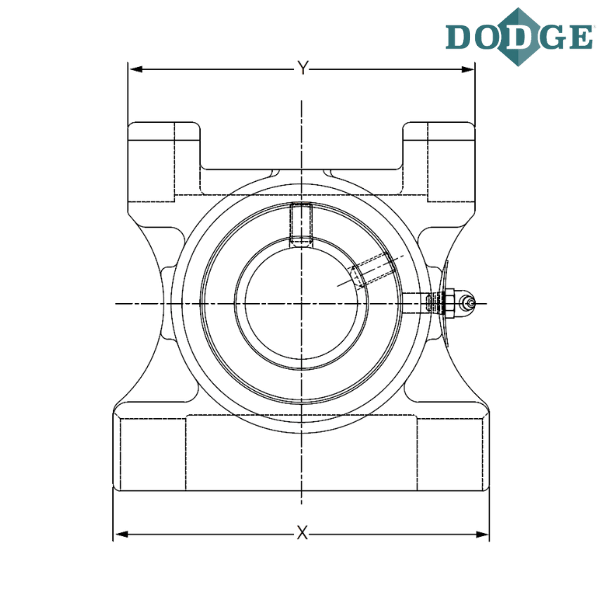

X (inch) - 6.75
Y (inch) - 7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TP - Top Angle Take-Up Bearing, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal

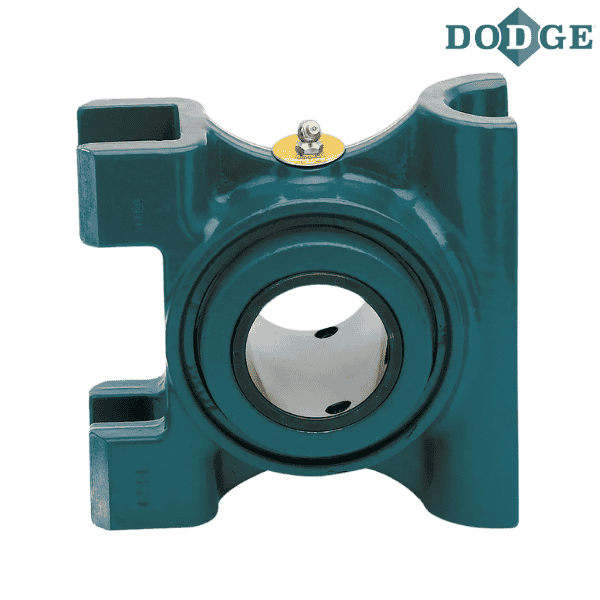

** Images are for representation purposes only
