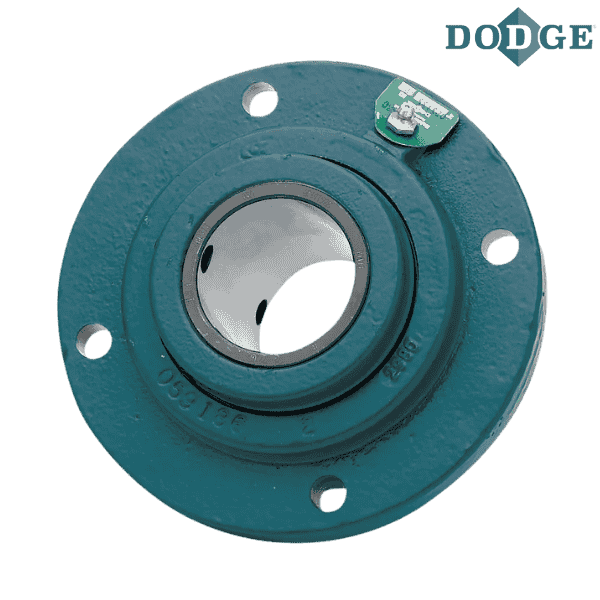

023147 DODGE - FC-E-415R


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 023147 DODGE - FC-E-415R
Category - Type E-Xtra Piloted Flange (Gray Iron)
Shaft Size (inch) - 4.9375
Part Name - FC-E-415R
Approximate Weight (lbs) - 130

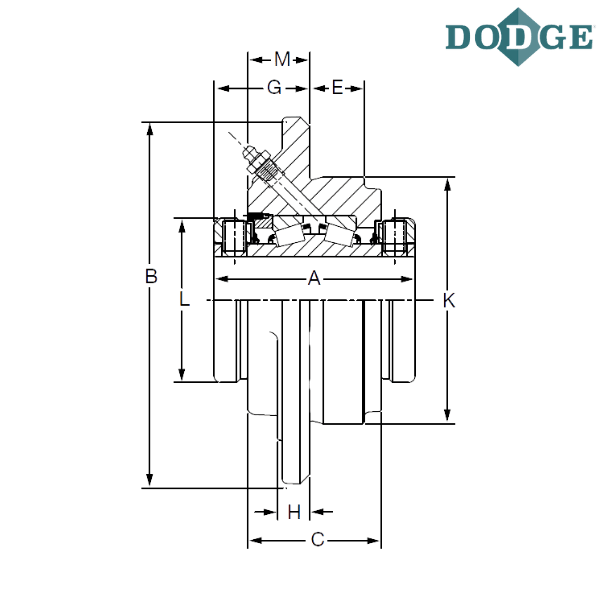

Length Through Bore (A) inch - 7.25
Overall Length (B) inch - 14.75
C (inch) - 5.06

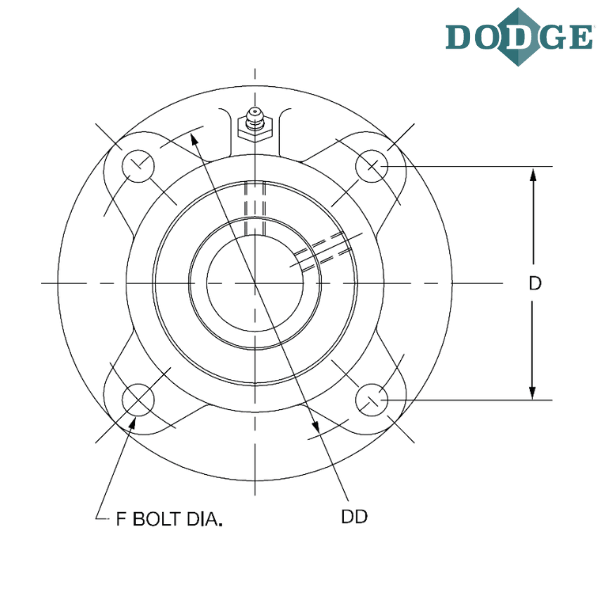

Bolt Circle (ØDD) inch - 12.75
Pilot Depth (E) inch - 1.75
F-Bolt Diameter (inch) - 0.875
G (inch) - 2.97
H (inch) - 1.25
Pilot Diameter (K) inch - 11.00 (+.000 -.002)
L (inch) - 7.45
M (inch) - 1.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flange Bearing (Flanged Cartridge)
E - Type E
R - “XTS” Triple Lip Seal

** Images are for representation purposes only
