Description
Brand - DODGE

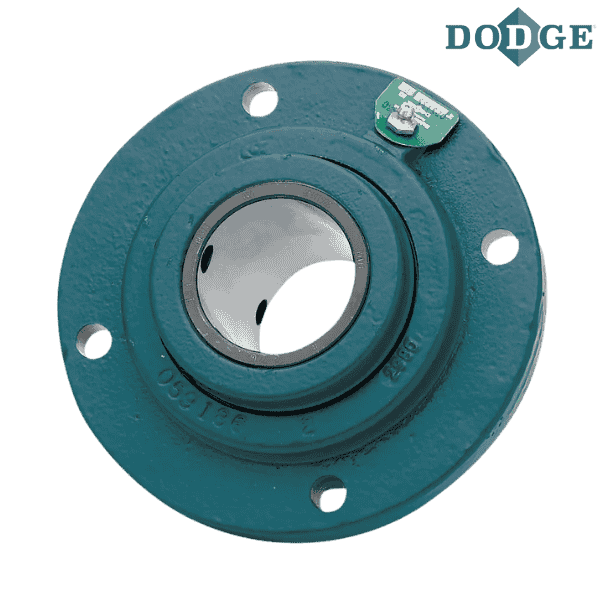

Item Number - 023133 DODGE - FC-E-207R
Category - Type E-Xtra Piloted Flange (Gray Iron)
Shaft Size (inch) - 2.4375
Part Name - FC-E-207R
Approximate Weight (lbs) - 18

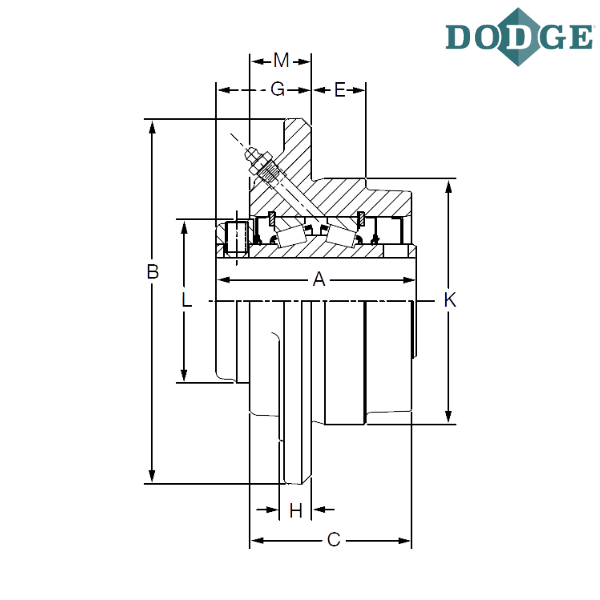

Length Through Bore (A) inch - 4
Overall Length (B) inch - 7.63
C (inch) - 3.31

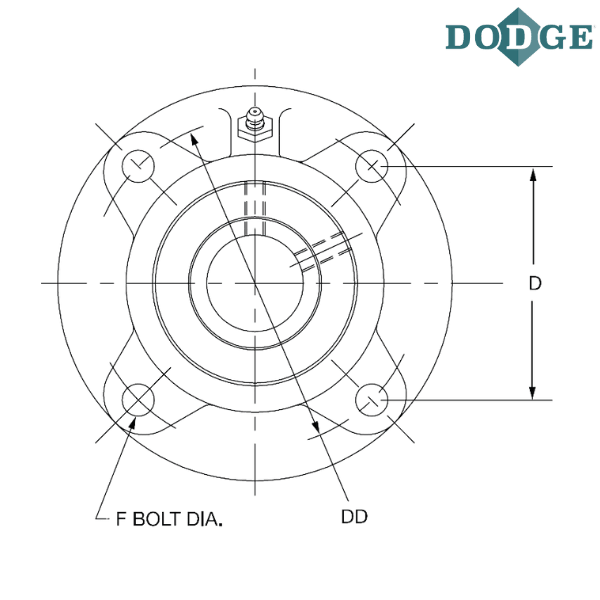

Bolt Center to Center Length (D) inch - 4.6
Bolt Circle (ØDD) inch - 6.5
Pilot Depth (E) inch - 1.31
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.81
H (inch) - 0.63
Pilot Diameter (K) inch - 5.50 (+.000 -.002)
L (inch) - 4.06
M (inch) - 1.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Piloted Flange Bearing (Flanged Cartridge)
E - Type E
R - “XTS” Triple Lip Seal
** Images are for representation purposes only
