023131 DODGE - FC-E-203R


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 023131 DODGE - FC-E-203R
Category - Type E-Xtra Piloted Flange (Gray Iron)
Shaft Size (inch) - 2.1875
Part Name - FC-E-203R
Approximate Weight (lbs) - 14

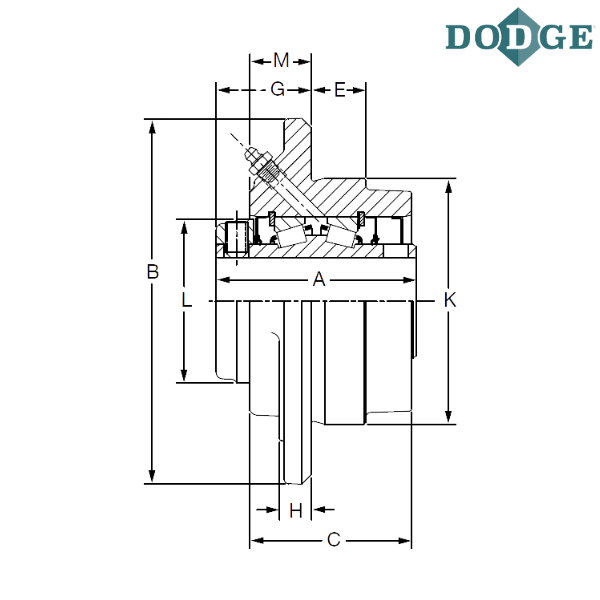

Length Through Bore (A) inch - 3.75
Overall Length (B) inch - 7.13
C (inch) - 3.09

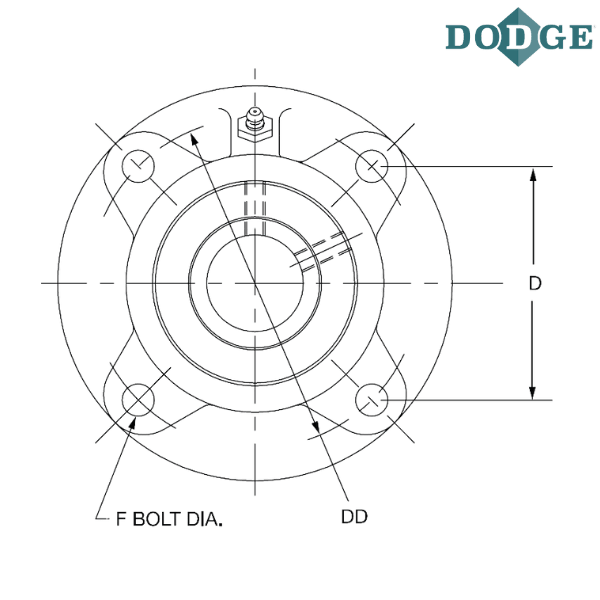

Bolt Center to Center Length (D) inch - 4.24
Bolt Circle (ØDD) inch - 6
Pilot Depth (E) inch - 1.19
F-Bolt Diameter (inch) - 0.5
G (inch) - 1.69
H (inch) - 0.56
Pilot Diameter (K) inch - 5.00 (+.000 -.002)
L (inch) - 3.75
M (inch) - 1.09
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Piloted Flange Bearing (Flanged Cartridge)
E - Type E
R - “XTS” Triple Lip Seal

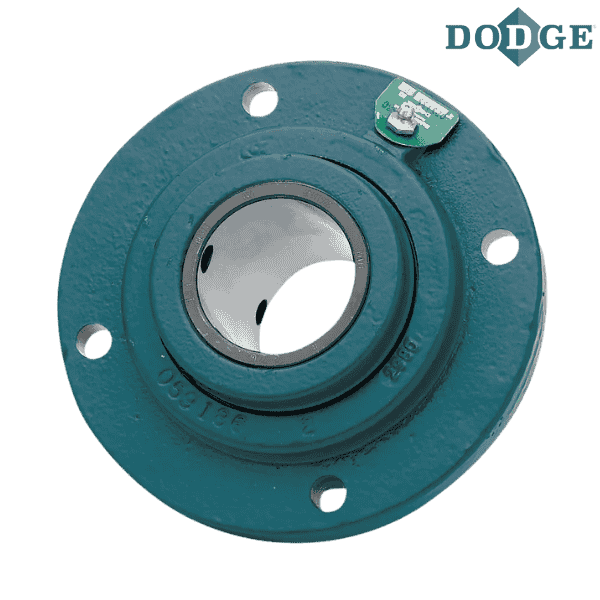

** Images are for representation purposes only
