Description
Brand - DODGE

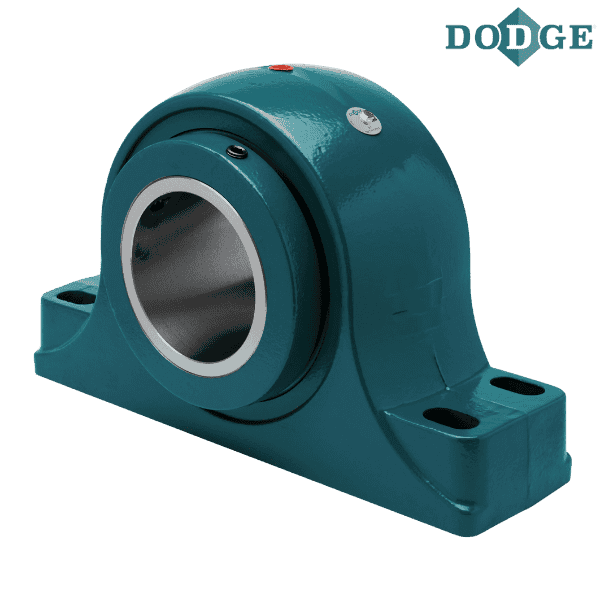

Item Number - 023046 DODGE - P4B-E-700R
Category - 4-Bolt Base Type E-Xtra Pillow Block - Inch (Gray Iron)
Shaft Size (inch) - 7
Part Name - P4B-E-700R
Approximate Weight (lbs) - 335

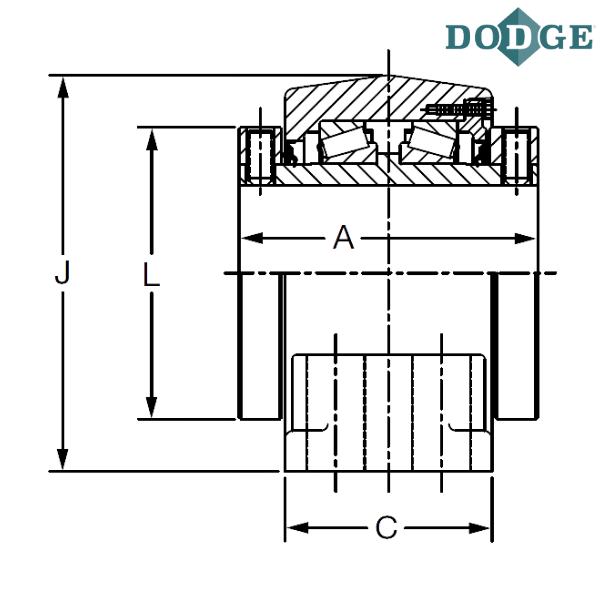

Length Through Bore (A) inch - 10.5
Overall Length (B) inch - 26
C (inch) - 7.13
Bolt to Bolt Minimum Distance (D min) inch - 21.25
Bolt to Bolt Maximum Distance (D max) inch - 23.25
Bolt Width (E) inch - 4.63
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 3.69
Overall Height (J) inch - 14.94
L (inch) - 11.38
Base to Center Height (M) inch - 7.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal
** Images are for representation purposes only
