023028 DODGE - P4B-E-215R


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 023028 DODGE - P4B-E-215R
Category - 4-Bolt Base Type E-Xtra Pillow Block - Inch (Gray Iron)
Shaft Size (inch) - 2.9375
Part Name - P4B-E-215R
Approximate Weight (lbs) - 28

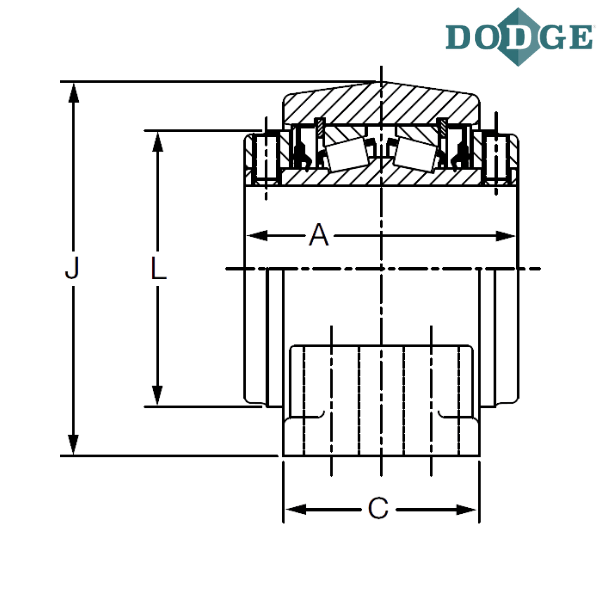

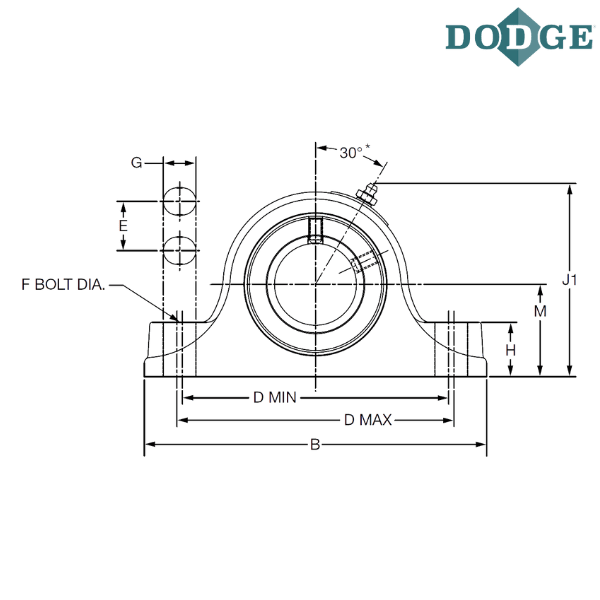

Length Through Bore (A) inch - 4.5
Overall Length (B) inch - 12
C (inch) - 4
Bolt to Bolt Minimum Distance (D min) inch - 9.19
Bolt to Bolt Maximum Distance (D max) inch - 9.81
Bolt Width (E) inch - 2.13
F-Bolt Diameter (inch) - 0.625
G (inch) - 1
H (inch) - 1.88
Overall Height (J) inch - 6.25
J (inch) - 6.34
L (inch) - 4.72
Base to Center Height (M) inch - 3.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal

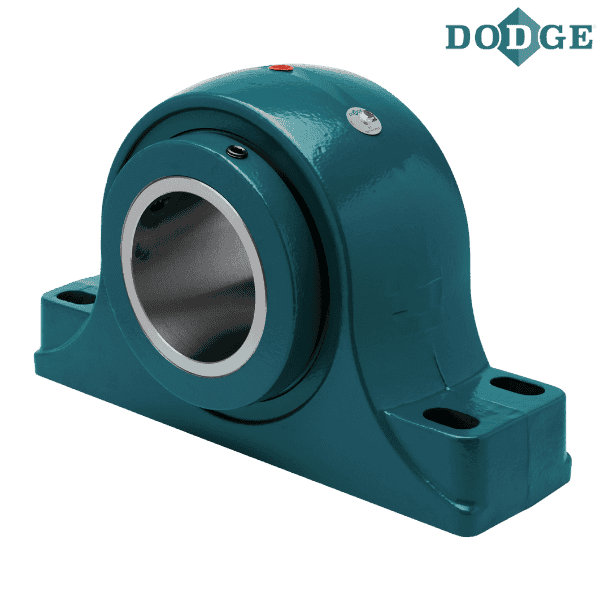

** Images are for representation purposes only
