023011 DODGE - P2B-E-203R


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 023011 DODGE - P2B-E-203R
Category - 2-Bolt Base Type E-Xtra Pillow Block - Inch (Gray Iron)
Shaft Size (inch) - 2.1875
Part Name - P2B-E-203R
Approximate Weight (lbs) - 15

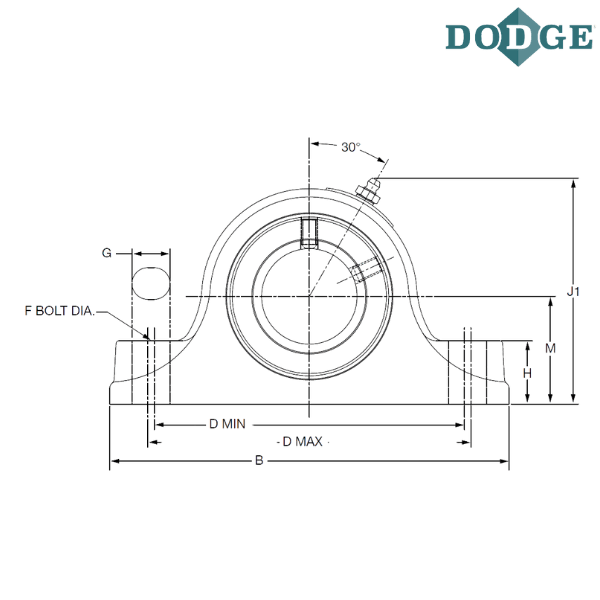

Length Through Bore (A) inch - 3.75
Overall Length (B) inch - 9.63
Width (C) inch - 2.63
Bolt to Bolt Minimum Distance (D min) inch - 7.63
Bolt to Bolt Maximum Distance (D max) inch - 7.88
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.88
H (inch) - 1.5
J (inch) - 5
Overall Height (J1) inch - 5.17
L (inch) - 3.75
Base to Center Height (M) inch - 2.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal

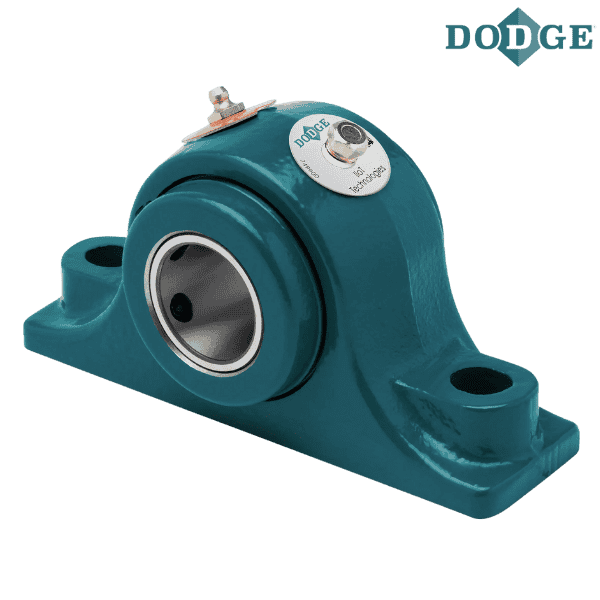

** Images are for representation purposes only
