019243 DODGE - CP-515X30-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 019243 DODGE - CP-515X30-TUFR
Category - Center Pull Wide Slot Take-Up Frame
Description - CP-515X30-TUFR
Frame Size - CP515
Take-Up Frame Travel (inch) - 30
Weight (lbs) - 150
Maximum Travel of S2000 and IMPERIAL (inch) - 32.71875
Maximum Travel of Type E and K (inch) - 32.46875

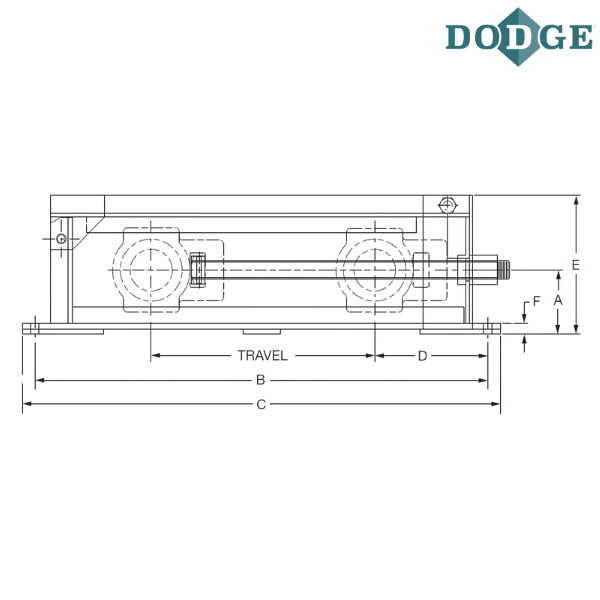

A (inch) - 5.125
Bolt Center To Center Length (B) inch - 48 1/2
Overall Length (C) inch - 48.5
D of S2000 and IMPERIAL (inch) - 9.25
D of Type K and E (inch) - 9.375
Overall Height (E) inch - 11.15625
F (inch) - 0.875

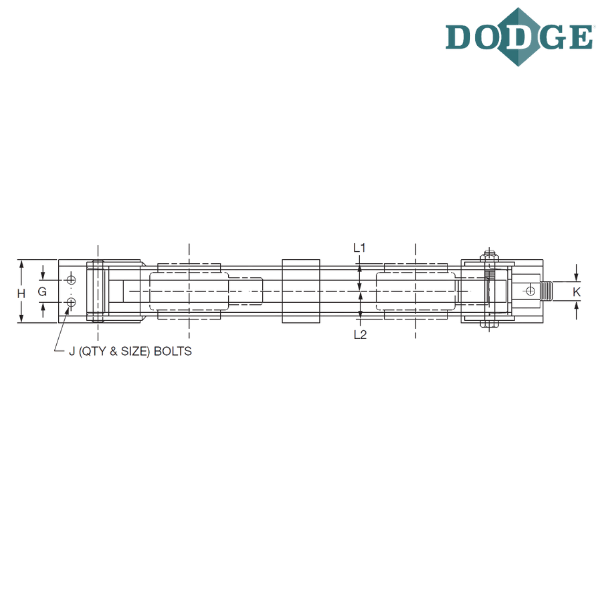

Bolt Center-to-Center Width (G) inch - 2
H (inch) - 5
Quantity (J) - 4
Size Diameter (J) inch - 0.625
K (inch) - 1-1/2-6NC
L1 (inch) - Available on Request
L2 (inch) - Available on Request

Notes :
CP - Center Pull Wide Slot Take-Up Frame
515 - Frame Size Designation
30 - Inches of Travel
TUFR - Take-Up Frame

** Images are for representation purposes only
