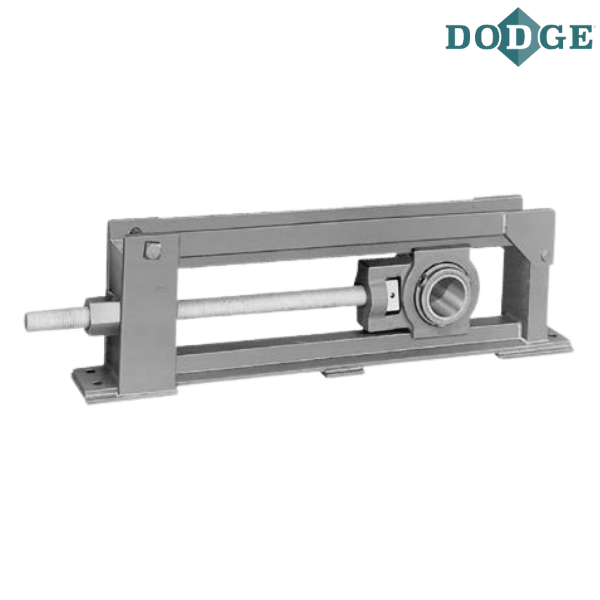

019200 DODGE - CP-308X12-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 019200 DODGE - CP-308X12-TUFR
Category - Center Pull Wide Slot Take-Up Frame
Description - CP-308X12-TUFR
Frame Size - CP308
Take-Up Frame Travel (inch) - 12
Weight (lbs) - 30
Maximum Travel of S2000 and IMPERIAL (inch) - 15.46875
Maximum Travel of Type E and K (inch) - 15.46875

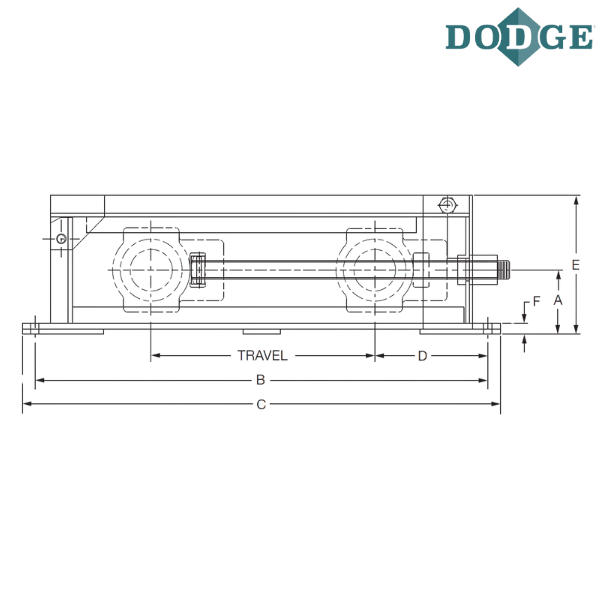

A (inch) - 3.4375
Bolt Center To Center Length (B) inch - 26
Overall Length (C) inch - 26.0
D of S2000 and IMPERIAL (inch) - 6
D of Type K and E (inch) - 6
Overall Height (E) inch - 7.0
F (inch) - 0.6875
H (inch) - 3
Quantity (J) - 2
Size Diameter (J) inch - 0.5
K (inch) - 3/4-10NC
L1 (inch) - Available on Request
L2 (inch) - Available on Request

Notes :
CP - Center Pull Wide Slot Take-Up Frame
308 - Frame Size Designation
12 - Inches of Travel
TUFR - Take-Up Frame

** Images are for representation purposes only
