013918 DODGE - TPHU-160X24-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 013918 DODGE - TPHU-160X24-TUFR
Category - Top Angle Heavy Duty Universal Take-Up Frame
Description - TPHU-160X24-TUFR
Possible Shaft Sizes (inch) - 3.6875, 3.9375, 4
Frame Size - TPHU160
Nominal Travel (inch) - 24
Weight (lbs) - 168
Overall Length (B) inch - 50.5

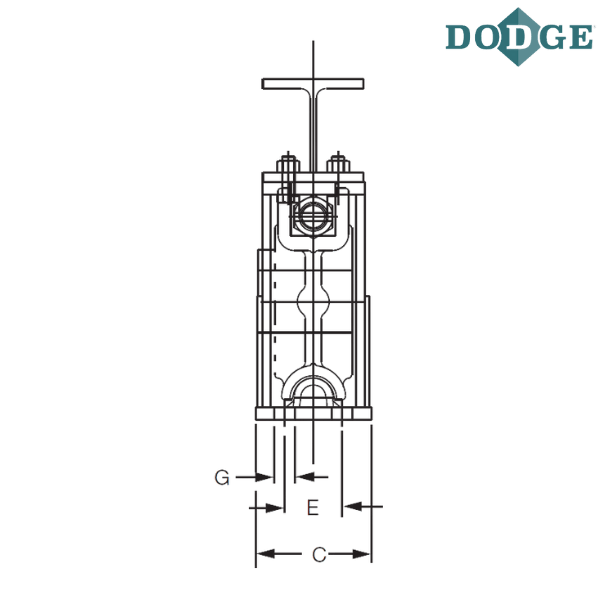

Base Width (C) inch - 5.5
Bolt Center-to-Center Length (D) inch - 48
Bolt Center-to-Center Width (E) inch - 2.5
F-Base Bolt Diameter (inch) - 0.75
G (inch) - 0.8125
H (inch) - 1
Overall Height (J) inch - 17
Base to Center Height (M) inch - 7
R (inch) - 11.625
S Screw Diameter (S) inch - 1.25
Maximum Travel (T) inch - 28.5
U (inch) - 9.75

Notes :
TPHU - Top Angle Heavy Duty Universal Take-Up Frame
160 - Frame Size Designation
24 - Inches of Travel
TUFR - Take-Up Frame
