Description
Brand - DODGE
Item Number - 013909 DODGE - TPHU-140X30-TUFR
Category - Top Angle Heavy Duty Universal Take-Up Frame
Description - TPHU-140X30-TUFR
Possible Shaft Sizes (inch) - 2.6875, 2.75, 2.9375, 3
Frame Size - TPHU140
Nominal Travel (inch) - 30
Weight (lbs) - 119

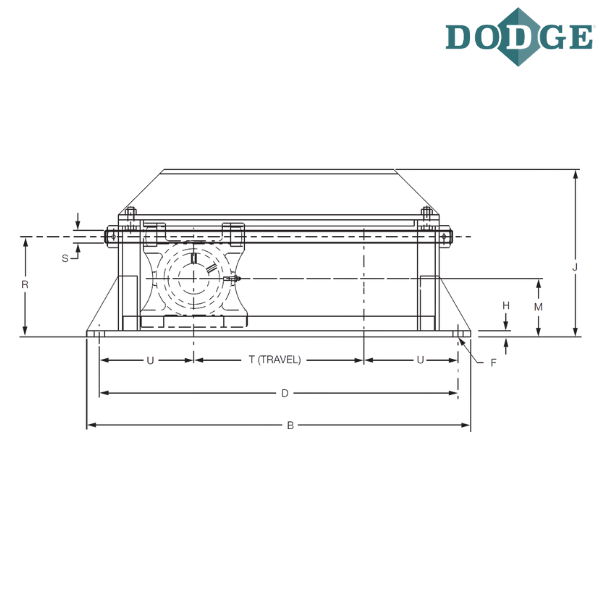

Overall Length (B) inch - 50.5

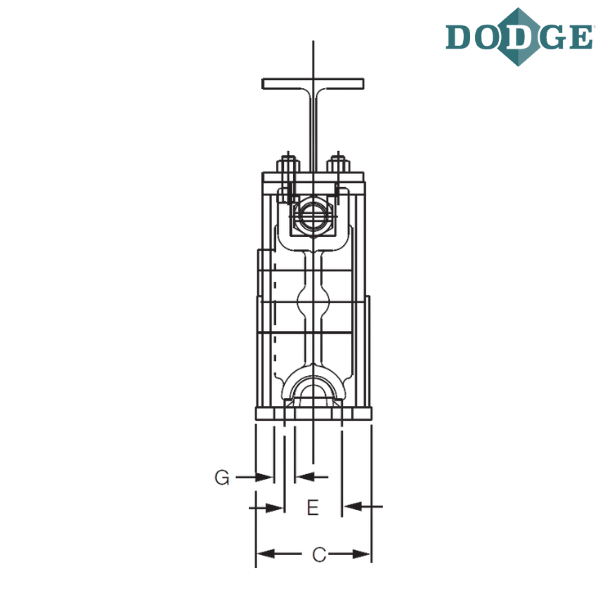

Base Width (C) inch - 4.5
Bolt Center-to-Center Length (D) inch - 48.5
Bolt Center-to-Center Width (E) inch - 2
F-Base Bolt Diameter (inch) - 0.625
G (inch) - 0.6875
H (inch) - 0.75
Overall Height (J) inch - 12.3125
Base to Center Height (M) inch - 5.125
R (inch) - 8.5
S Screw Diameter (S) inch - 1
Maximum Travel (T) inch - 33.5
U (inch) - 7.5
Notes :
TPHU - Top Angle Heavy Duty Universal Take-Up Frame
140 - Frame Size Designation
30 - Inches of Travel
TUFR - Take-Up Frame
** Images are for representation purposes only
