Description
Brand - DODGE
Item Number - 012302 DODGE - TP-G-200
Category - Setscrew Ball Bearings (Type G Normal Duty Top Angle Take-Up Bearings)
Series - 210
Shaft Size (inch) - 2.0
Description - TP-G-200
Weight (lbs) - 10
Frame Size - TP10

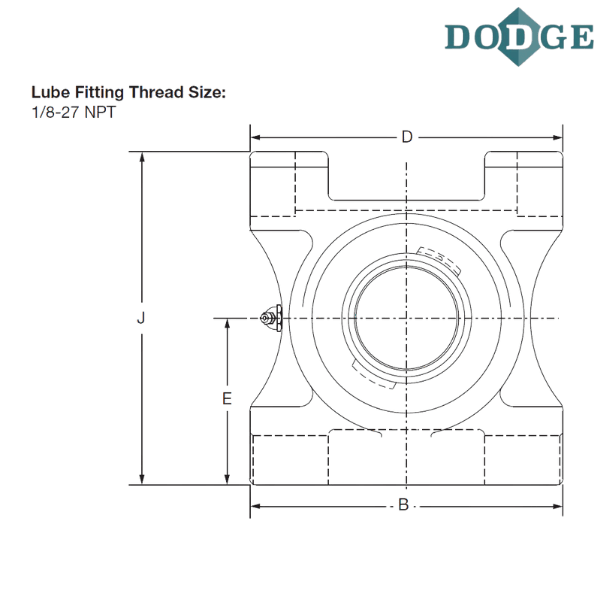

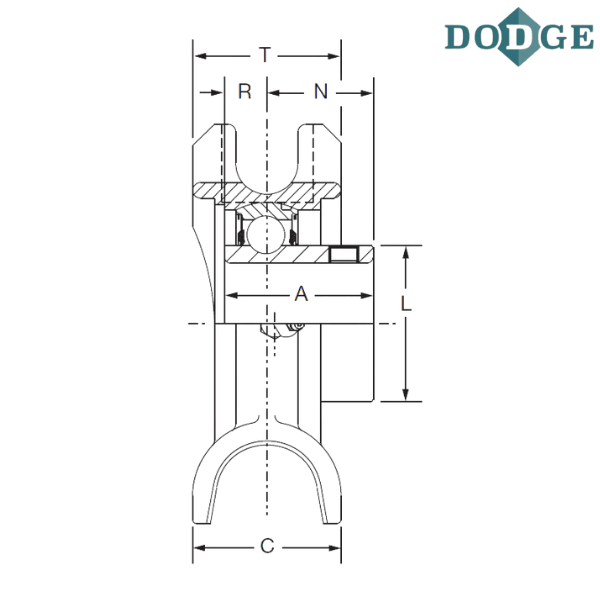

Length Through Bore (A) inch - 1.94
B (inch) - 6.50
C (inch) - 2.38
D (inch) - 6.00
E (inch) - 3.25
J (inch) - 6.38
L (inch) - 2.43
N (inch) - 1.19
R (inch) - 0.75
T (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top angle take-up

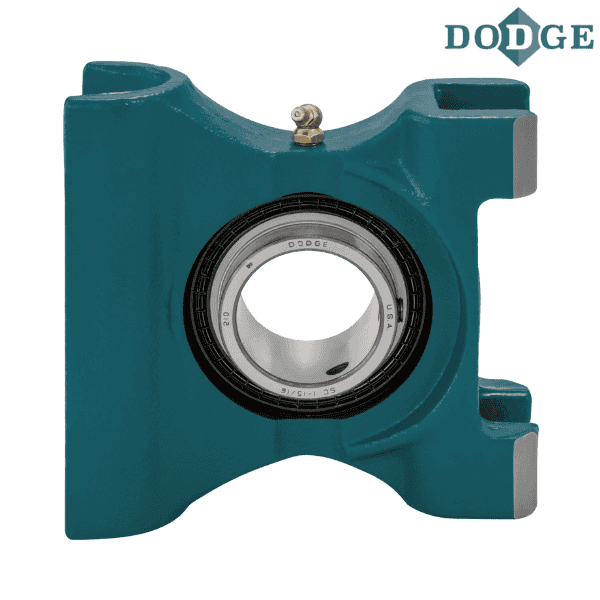

** Images are for representation purposes only
