Description
Brand - DODGE

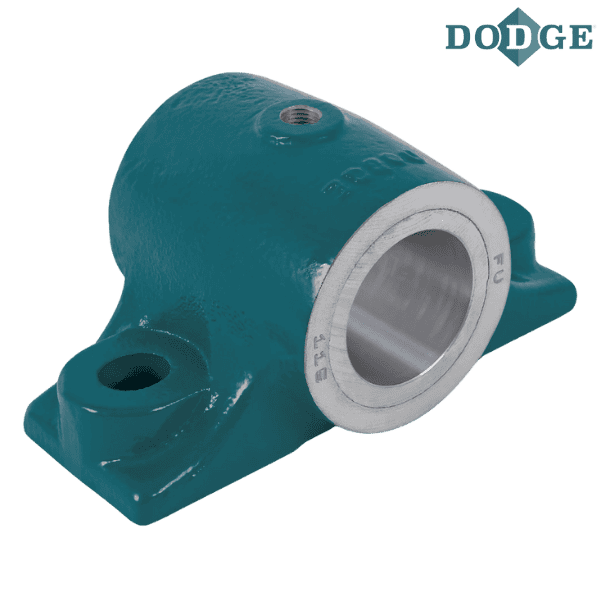

Item Number - 006148 DODGE - P2B-BASO-303
Category - Sleeve Bearings - Solid Babbitted Journal Bearings
Shaft Size (inch) - 3.1875
Description - P2B-BASO-303
Weight (lbs) - 33

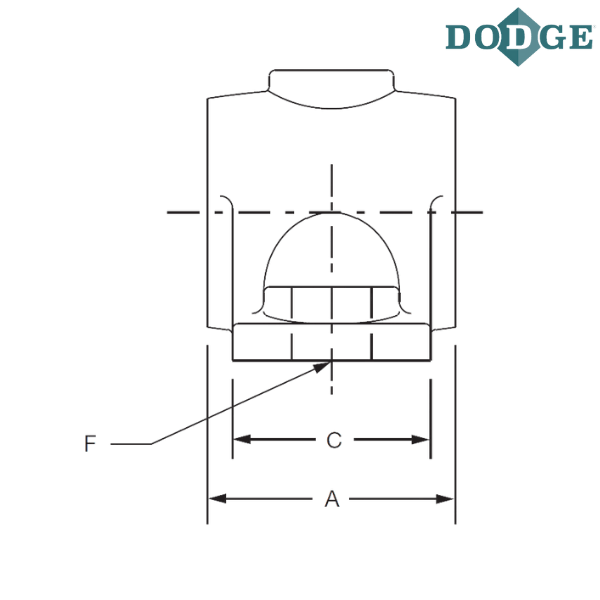

Length Through Bore (A) inch - 6.875

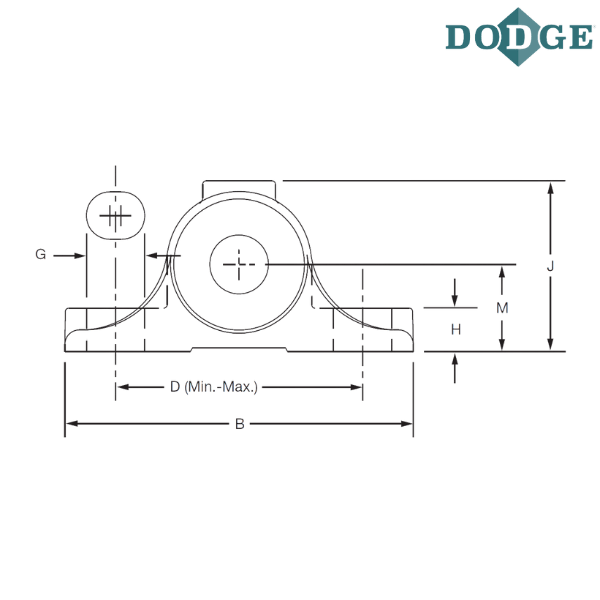

Overall Length (B) inch - 10.75
C (inch) - 4
Bolt to Bolt Minimum Distance (D min) inch - 7.625
Bolt to Bolt Maximum Distance (D max) inch - 8.375
F-Bolt Diameter (inch) - 1
G (inch) - 1.4375
H (inch) - 1.875
Overall Height (J) inch - 5.4375
Base to Center Height (M) inch - 2.75
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Number Required) - 1
Grease Cups (Size) - 2
Notes :
P2B - Pillow Block, 2 Bolt Base
BASO - Babbitted Solid
303 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
