Description
Brand - DODGE

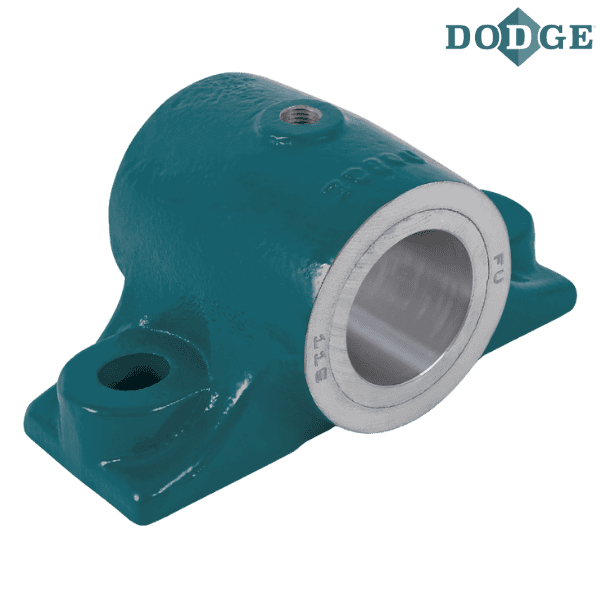

Item Number - 006132 DODGE - P2B-BASO-203
Category - Sleeve Bearings - Solid Babbitted Journal Bearings
Shaft Size (inch) - 2.1875
Description - P2B-BASO-203
Weight (lbs) - 12

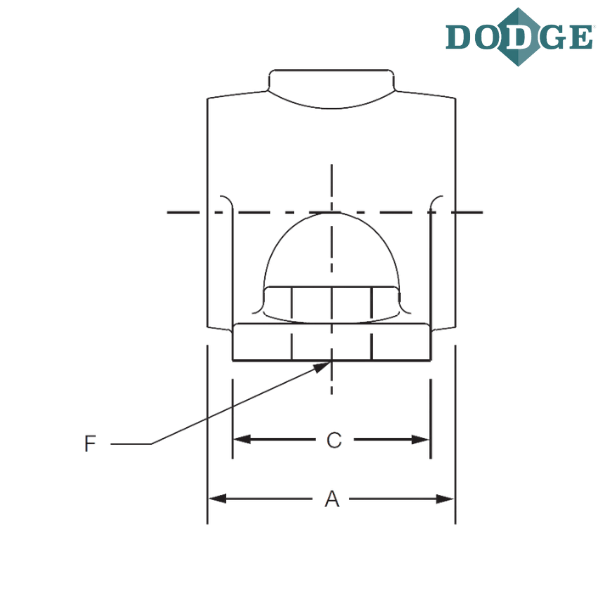

Length Through Bore (A) inch - 4.375
Overall Length (B) inch - 7.75
C (inch) - 2.75
Bolt to Bolt Minimum Distance (D min) inch - 5.5
Bolt to Bolt Maximum Distance (D max) inch - 6
F-Bolt Diameter (inch) - 0.6875
G (inch) - 1.03125
H (inch) - 1.25
Overall Height (J) inch - 3.8125
Base to Center Height (M) inch - 1.875
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Number Required) - 1
Grease Cups (Size) - 2
Notes :
P2B - Pillow Block, 2 Bolt Base
BASO - Babbitted Solid
203 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
