Description
Brand - DODGE
Item Number - 006076 DODGE - P2B-BASP-300
Category - Sleeve Bearings - Split Babbitted Journal Bearings
Shaft Size (inch) - 3
Description - P2B-BASP-300
Weight (lbs) - 23.7

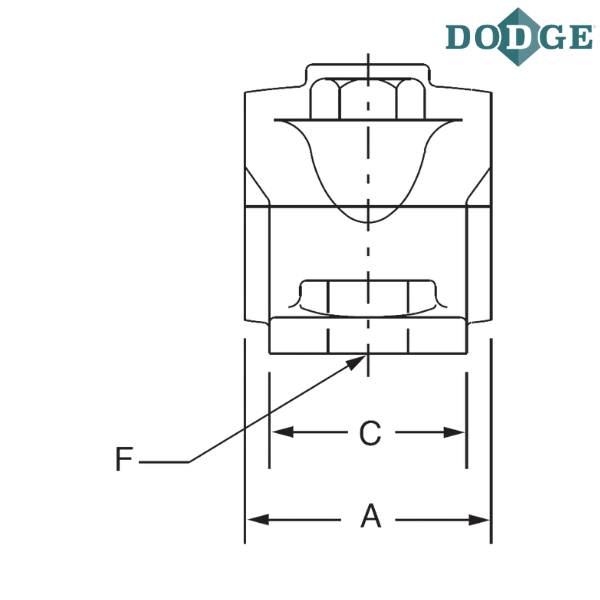

Length Through Bore (A) inch - 6
Overall Length (B) inch - 10.75
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 8.25
Bolt to Bolt Maximum Distance (D max) inch - 8.75
F-Bolt Diameter (inch) - 0.8125
G (inch) - 1.125
H (inch) - 1.3125
Overall Height (J) inch - 5
Base to Center Height (M) inch - 2.5
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Number Required) - 1
Grease Cups (Size) - 2
Notes :
P2B - Pillow Block, 2 Bolt Base
BASP - Babbitted Split
300 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
