Description
Brand - DODGE
Item Number - 006049 DODGE - P2B-BASP-112
Category - Sleeve Bearings - Split Babbitted Journal Bearings
Shaft Size (inch) - 1.75
Description - P2B-BASP-112
Weight (lbs) - 6.2

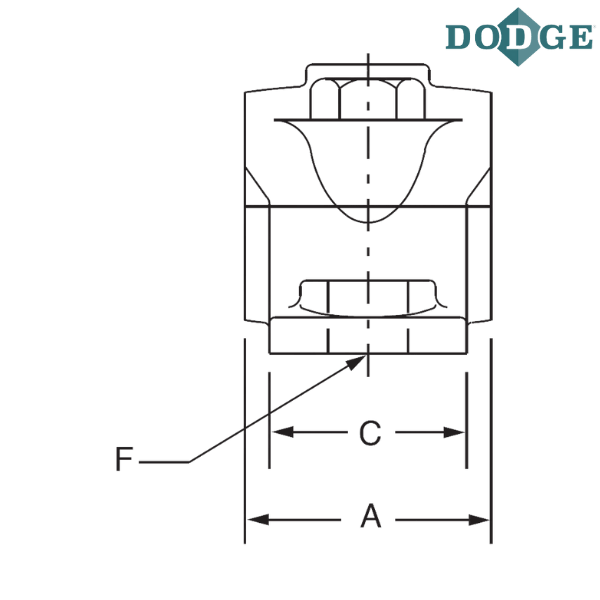

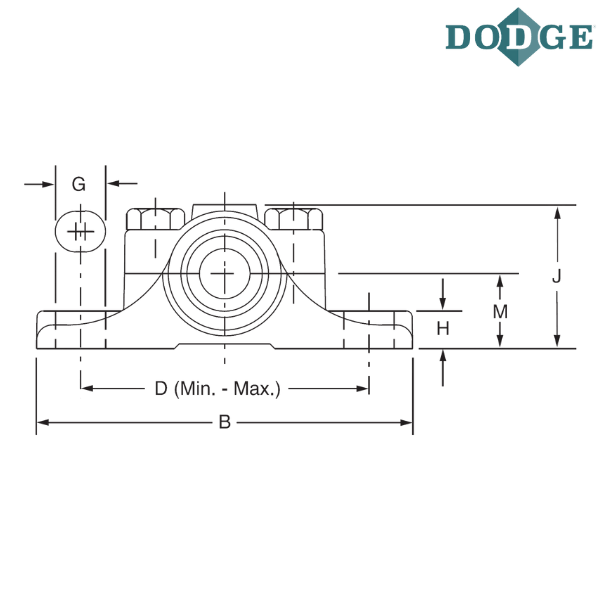

Length Through Bore (A) inch - 3.375
Overall Length (B) inch - 6.75
C (inch) - 2.25
Bolt to Bolt Minimum Distance (D min) inch - 5.125
Bolt to Bolt Maximum Distance (D max) inch - 5.375
F-Bolt Diameter (inch) - 0.5625
G (inch) - 0.78125
H (inch) - 0.8125
Overall Height (J) inch - 3.0625
Base to Center Height (M) inch - 1.5
Grease Cups (Pipe Tap) inch - 0.25
Grease Cups (Number Required) - 1
Grease Cups (Size) - 0
Notes :
P2B - Pillow Block, 2 Bolt Base
BASP - Babbitted Split
112 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

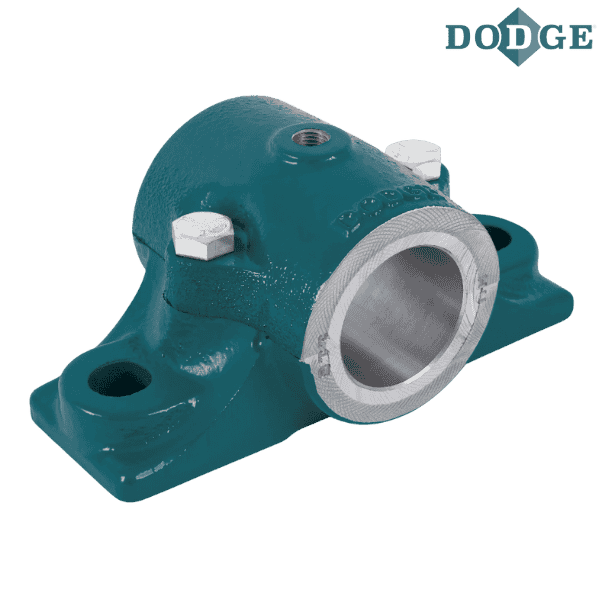

** Images are for representation purposes only
