Description
Brand - DODGE
Item Number - 006037 DODGE - P2B-BASP-107

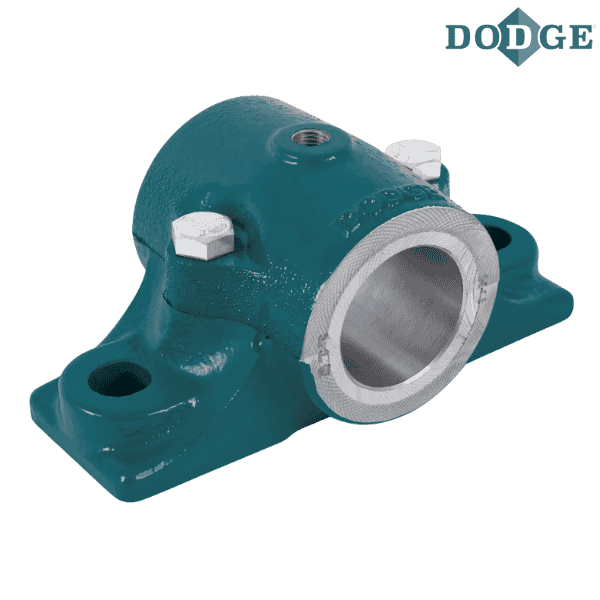

Category - Sleeve Bearings - Split Babbitted Journal Bearings
Shaft Size (inch) - 1.4375
Description - P2B-BASP-107
Weight (lbs) - 1.6

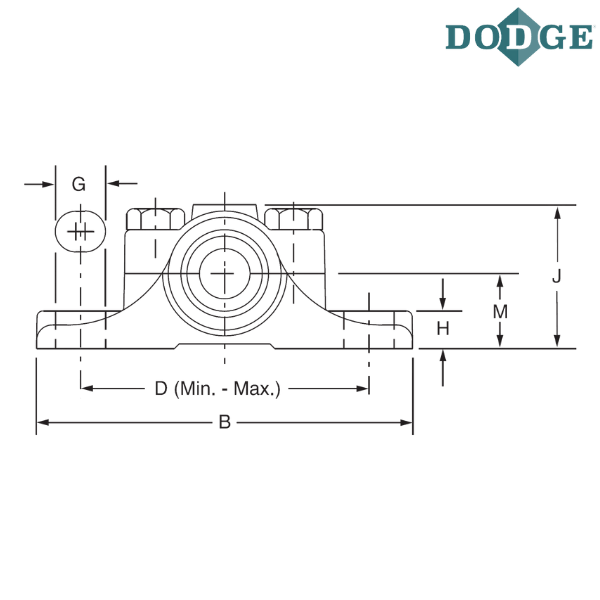

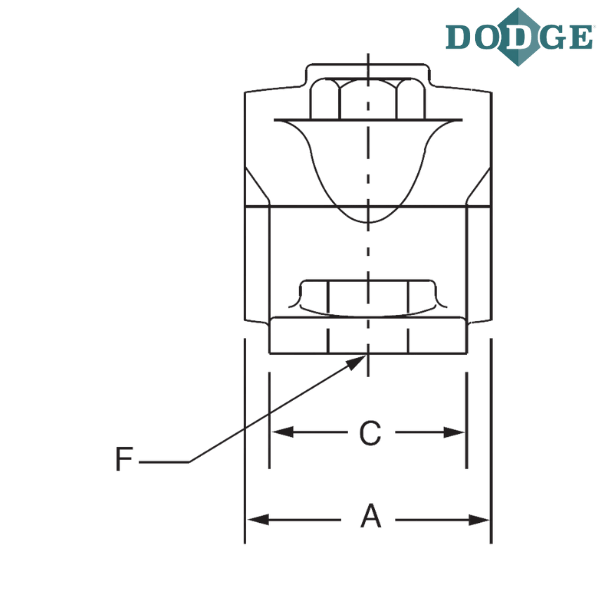

Length Through Bore (A) inch - 3
Overall Length (B) inch - 6.25
C (inch) - 2
Bolt to Bolt Minimum Distance (D min) inch - 4.8125
Bolt to Bolt Maximum Distance (D max) inch - 4.9375
F-Bolt Diameter (inch) - 0.5625
G (inch) - 0.6875
H (inch) - 0.75
Overall Height (J) inch - 2.75
Base to Center Height (M) inch - 1.375
Grease Cups (Pipe Tap) inch - 0.25
Grease Cups (Number Required) - 1
Grease Cups (Size) - 0
Notes :
P2B - Pillow Block, 2 Bolt Base
BASP - Babbitted Split
107 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
