Description
Brand - DODGE
Item Number - 006028 DODGE - P2B-BASP-104
Category - Sleeve Bearings - Split Babbitted Journal Bearings
Shaft Size (inch) - 1.25
Description - P2B-BASP-104
Weight (lbs) - 3

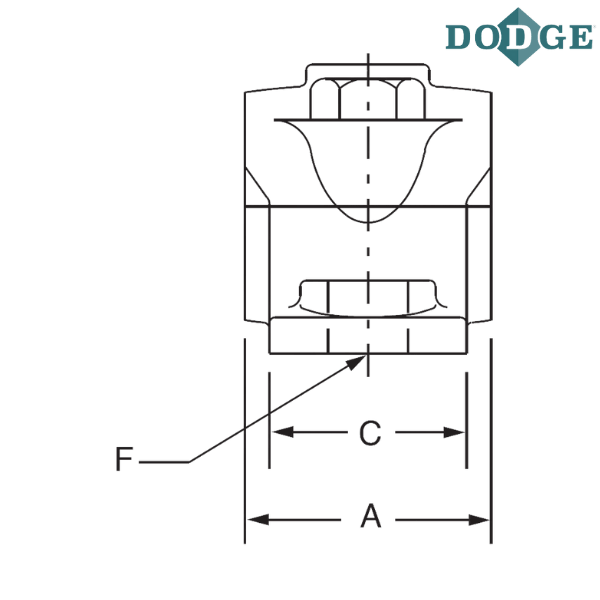

Length Through Bore (A) inch - 2.5

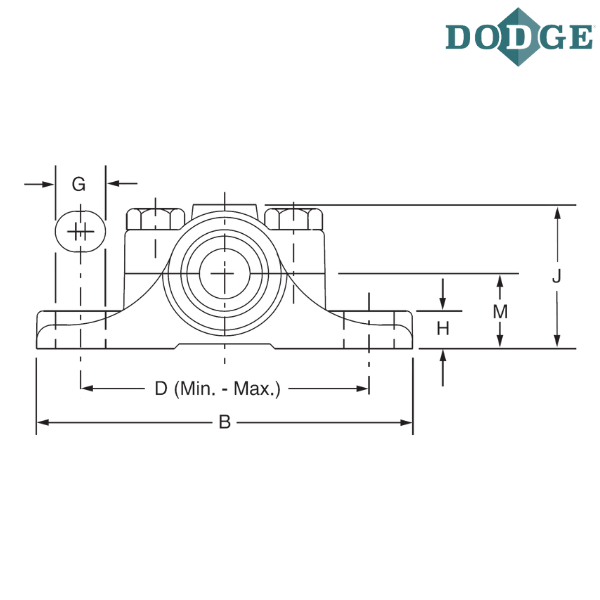

Overall Length (B) inch - 5.25
C (inch) - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 4
Bolt to Bolt Maximum Distance (D max) inch - 4.25
F-Bolt Diameter (inch) - 0.4375
G (inch) - 0.625
H (inch) - 0.625
Overall Height (J) inch - 2.4375
Base to Center Height (M) inch - 1.25
Grease Cups (Pipe Tap) inch - 0.125
Grease Cups (Number Required) - 1
Grease Cups (Size) - 0
Notes :
P2B - Pillow Block, 2 Bolt Base
BASP - Babbitted Split
104 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

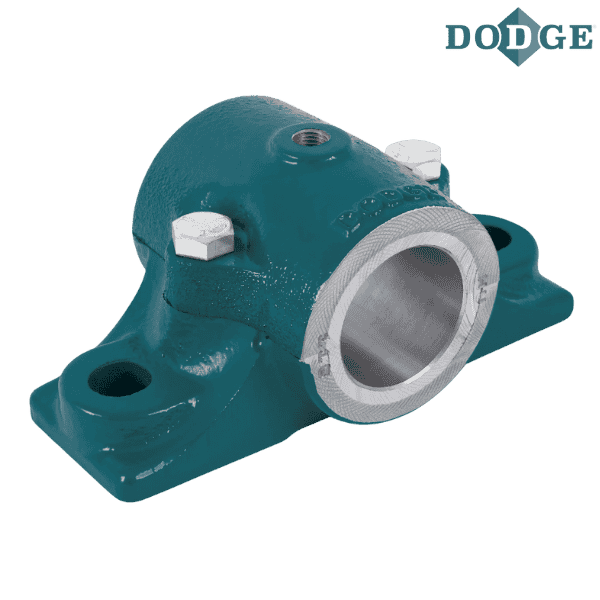

** Images are for representation purposes only
