Description
Brand - DODGE
Item Number - 006013 DODGE - P2B-BASP-015
Category - Sleeve Bearings - Split Babbitted Journal Bearings
Shaft Size (inch) - 0.9375
Description - P2B-BASP-015
Weight (lbs) - 1.8

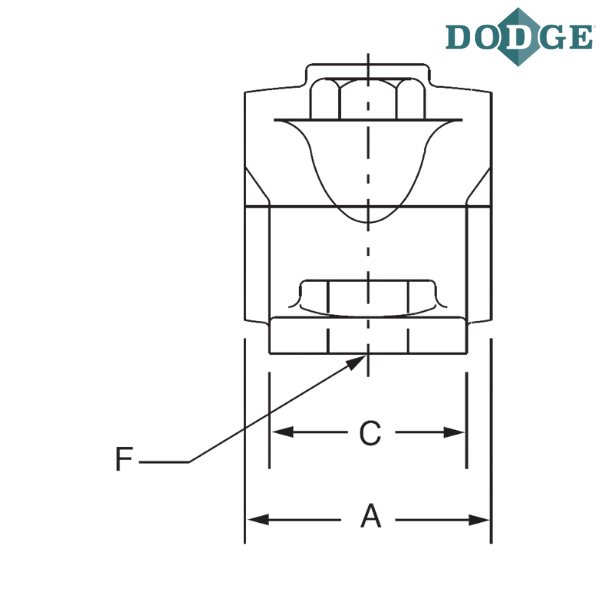

Length Through Bore (A) inch - 2
Overall Length (B) inch - 4.75
C (inch) - 1.5
Bolt to Bolt Minimum Distance (D min) inch - 3.5
Bolt to Bolt Maximum Distance (D max) inch - 3.75
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.5625
H (inch) - 0.5625
Overall Height (J) inch - 2
Base to Center Height (M) inch - 1
Grease Cups (Pipe Tap) inch - 0.125
Grease Cups (Number Required) - 1
Grease Cups (Size) - 0
Notes :
P2B - Pillow Block, 2 Bolt Base
BASP - Babbitted Split
015 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
