Description
Brand - IKO
Item Number - TLA 1010 Z IKO

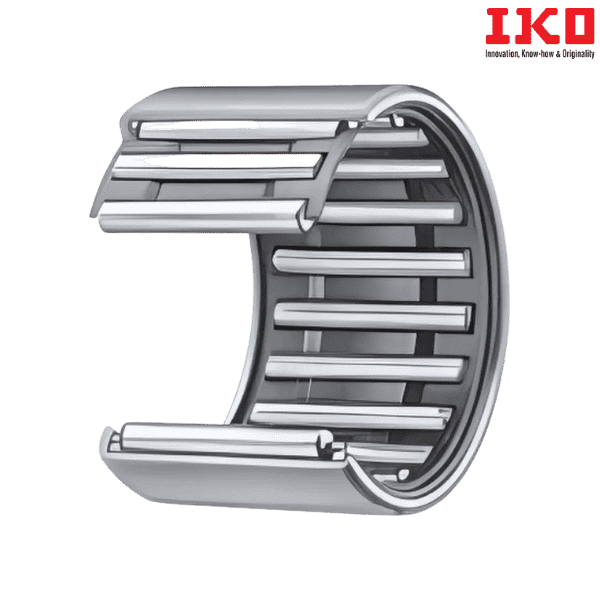

Category - Shell Type Needle Roller Bearing (Standard)
Shaft Diameter (mm) - 10

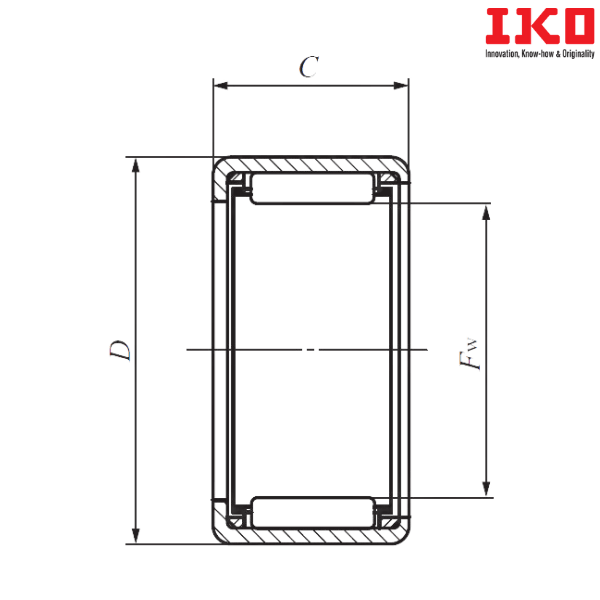

Boundary Dimension (Fw) mm - 10
Outer Diameter (D) mm - 14
Boundary Dimension (C) mm - 10
Maximum Boundary Dimension (t2) mm - 1
Maximum Shaft Diameter (h6) mm - 10
Minimum Shaft Diameter (h6) mm - 9.991
Maximum Housing Bore Diameter (N7) mm - 13.995
Minimum Housing Bore Diameter (N7) mm - 13.977
Basic Dynamic Load Rating (C) N - 3870
Basic Static Load Rating (C0) N - 4740
Allowable Rotational Speed (min-1) - 40000
Weight (kg) - 0.0037
Assembled Inner Ring - IRT 710
Closed End - TLAM 1010
Weight of the Closed End (kg) - 0.004
** Images are for representation purposes only
