Description
Brand - ZEN
Item Number - SR 166-2Z ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - standard
Type - Metal shields with Stainless Steel

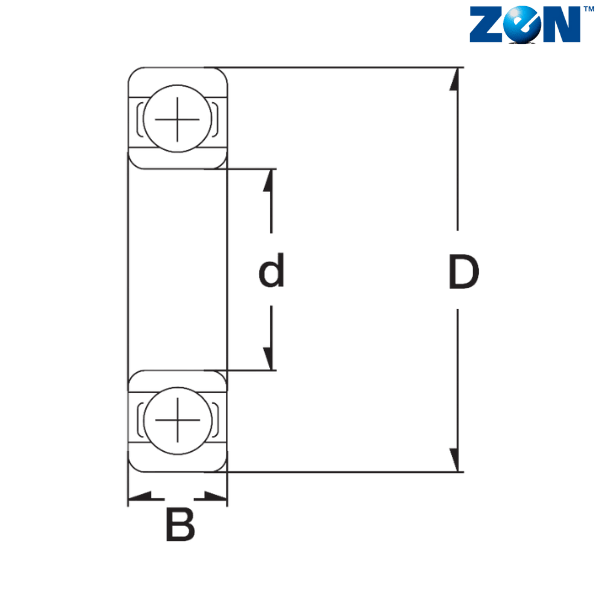

Inner Diameter (d) mm - 4.763
Outer Diameter (D) mm - 9.525
Width (mm) - 3.175
Inner Diameter (d) inch - 0.1875
Outer Diameter (D) inch - 0.3750
Width (inch) - 0.1250
Dynamic Load Rating (C) N (only 100 Cr6) - 709
Static Load Rating (C) N (only 100 Cr6) - 272
Limiting Speed x1000rpm (Grease) - 50.0
Limiting Speed x1000rpm (Oil) - 60.0
Approximate Weight (g) - Less than 1 Gram
Compatible Ball Bearing (PTFE seals with Chrome Steel) - R 166-2TS
Compatible Ball Bearing (PTFE seals with Stainless Steel) - SR 166-2TS
Compatible Ball Bearing (Open Type with Chrome Steel) - R 166
Compatible Ball Bearing (Open Type with Stainless Steel) - SR 166
Compatible Ball Bearing (Metal shields with Chrome Steel) - R 166-2Z
Notes :
R - Inch
2Z - Metal Shields
** Images are for representation purposes only
