Description
Brand - ZEN
Item Number - S61701-2Z ZEN
Category - Thin Section Bearing
Edge Type - standard
Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 18
Width (B) mm - 4
Dynamic Load Rating (N) - 648
Static Load Rating (N) - 371
Limiting Speed (Grease) - 13
Limiting Speed (Oil) - 15
Cage Type - W (Crown Cage)
Weight (kg) - 0.004
Outer Ring Material - AISI440
Inner Ring Material - AISI440
Ball Material - AISI440
Notes :
S - Stainless Steel
2Z - Metal Shields

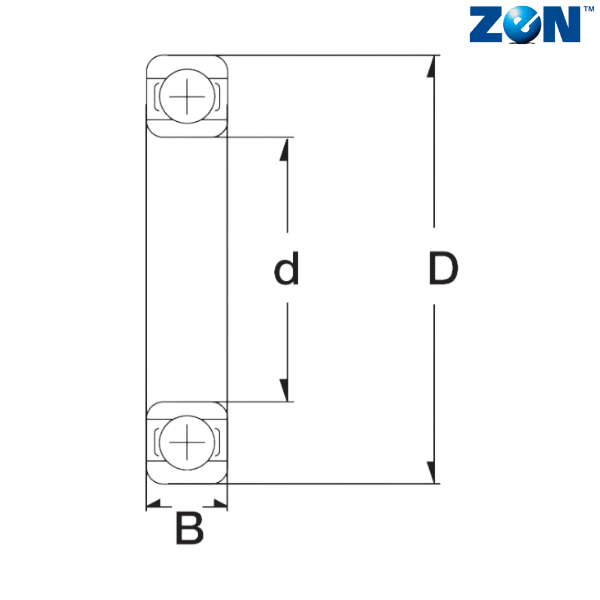

** Images are for representation purposes only
