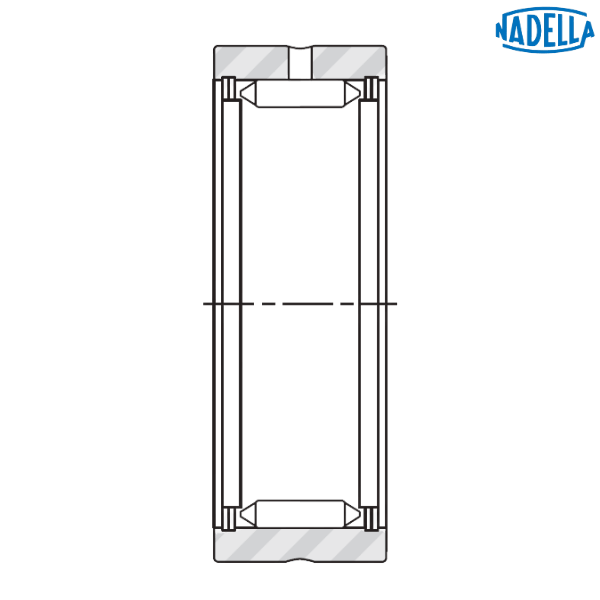

RNA 2030 NADELLA

Brand - NADELLA
Item Number - RNA 2030 NADELLA
Category - Full Complement Needle Roller Bearing without Inner Ring
Also Known As - RNA2030

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 38.2 mm
Diameter of the Inner Raceway (Fw) - 38.2 mm
Outer Diameter (D) - 52 mm
Width (C) - 22 mm
Dimension (Ew) - 44.2 mm
Minimum Chamfer Dimension (rs) - 0.65 mm
Dynamic Load Rating (C) - 34.5 kN
Static Load Rating (C0) - 66 kN
Speed Rating with Oil - 10000 rpm
Speed Rating with Grease - 6500 rpm
Weight - 0.139 kg

Description of Prefix :
RNA - Full complement needle bearing without inner ring
