Description

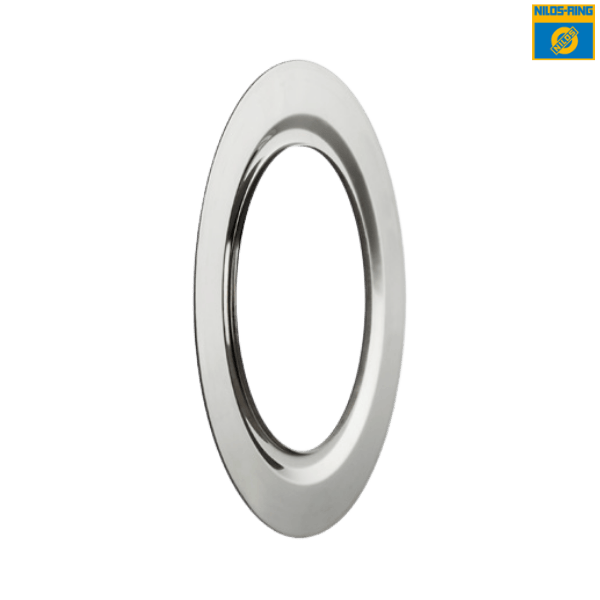

Brand - NILOS
Item Number - NUP 2214 JV NILOS
Category - NILOS-RING for Single Row Cylindrical Roller Bearing

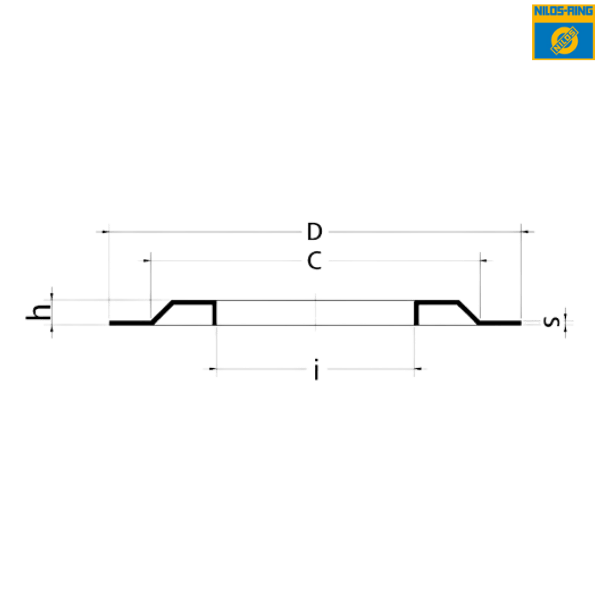

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 79.5 mm
Dimension (c) - 102 mm
Outer Diamter (D) - 125 mm
Width (h) - 3.5 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (NUP 22 Series) :
Bearing Part Number - NUP 2214
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 125 mm
Width (B) - 31 mm
♦ ♦ Images are for representation purposes only
