NA 3075 NADELLA

Brand - NADELLA
Item Number - NA 3075 NADELLA
Category - Full Complement Needle Bearing with Inner Ring

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 75 mm
Inner Diameter (d) - 75 mm
Outer Diameter (D) - 120 mm
Width (B) - 38 mm
Dimension (Fw) - 96 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Dynamic Load Rating (C) - 142 kN
Static Load Rating (C0) - 355 kN
Speed Rating with Oil - 4000 rpm
Speed Rating with Grease - 2600 rpm
Weight - 1.098 kg

Description of Prefix :
NA - Full complement needle bearings with inner ring

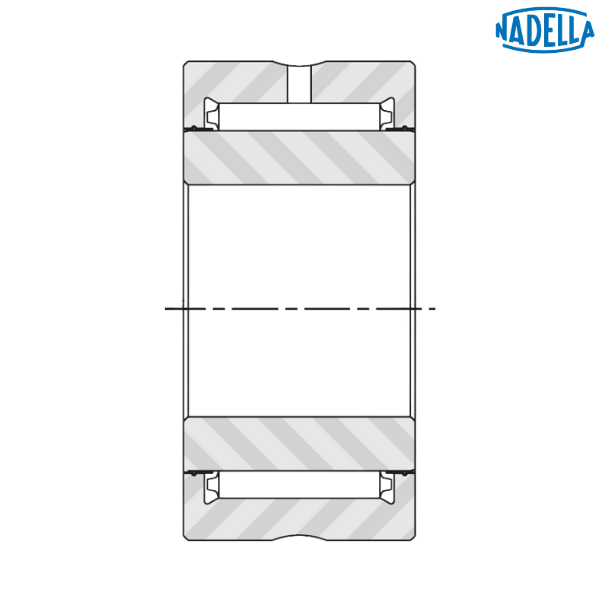

♦ ♦ Images are for representation purposes only
