Description
Brand - IKO
Item Number - LRT 859545 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 85

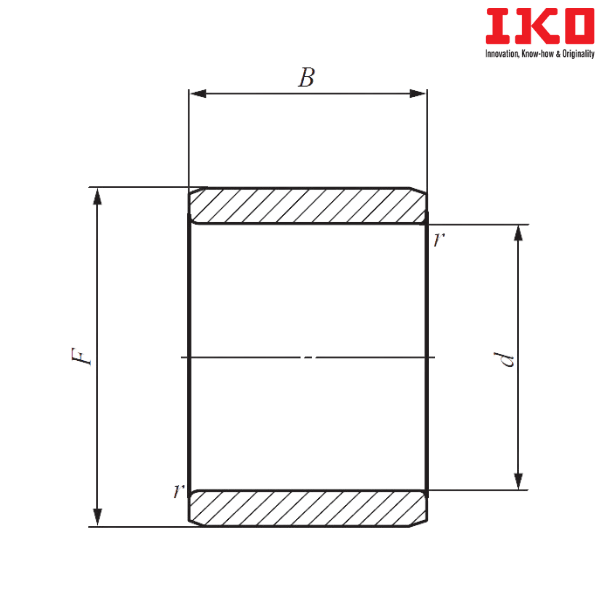

Boundary Dimension (d) mm - 85
Boundary Dimension (F) mm - 95
Boundary Dimension (B) mm - 45.5
Minimum Boundary Dimension (rs) mm - 1.5
Minimum Standard Mounting Dimension (da) mm - 93
Maximum Standard Mounting Dimension (da) mm - 93.5
Weight (kg) - 0.49
Probable Assembled Bearings - TR 9512045
** Images are for representation purposes only
