Description
Brand - ZEN
Item Number - LR608-NPPU ZEN
Category - LR Series (Track Rollers)

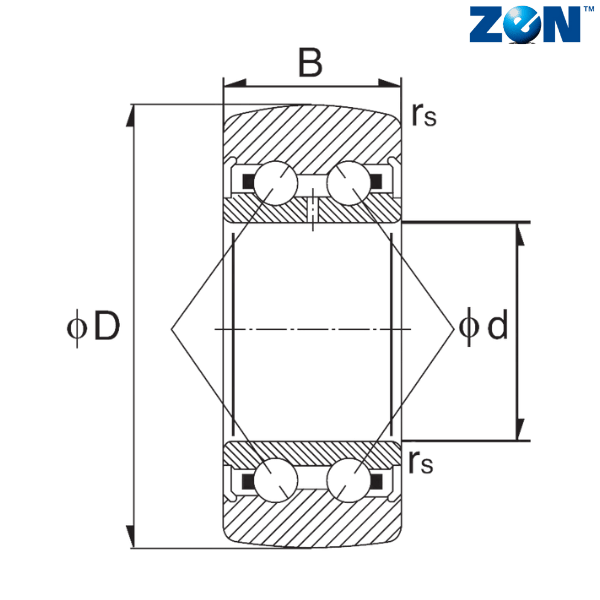

Inner Ring Dimension (d) mm - 8
Outer Ring Dimension (D) mm - 24
Width (B) mm - 7
Radius (rs) mm - 0.3
Dynamic Load Rating (N) - 2650
Static Load Rating (N) - 1100
Limiting Speed (NPP and NPPU) - 20
Weight (kg) - 0.03
Radial Play - 0.002-0.013
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
